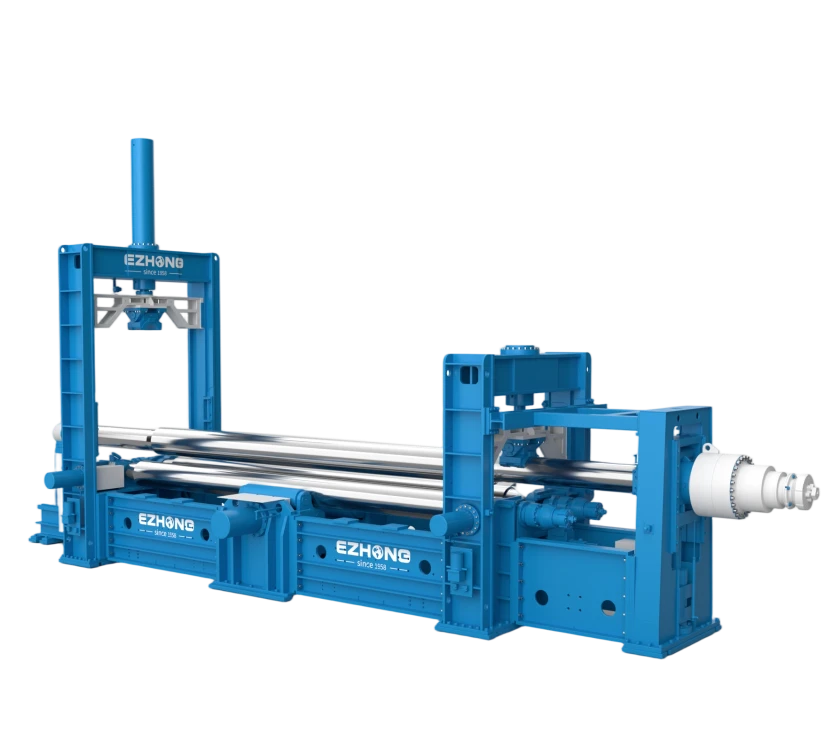

One clamping completes the rolling of an entire 12m pipe section. No segmentation, no welding joints – improving straightness and weld quality. Dedicated for large-diameter LSAW pipes and long-distance pipelines.
High-precision forming ensures accurate pipe dimensions, reducing rework and improving welding pass rates. Solid forged 42CrMo alloy steel rolls with hardness HB260–280 provide precision grinding without scratching or deformation.

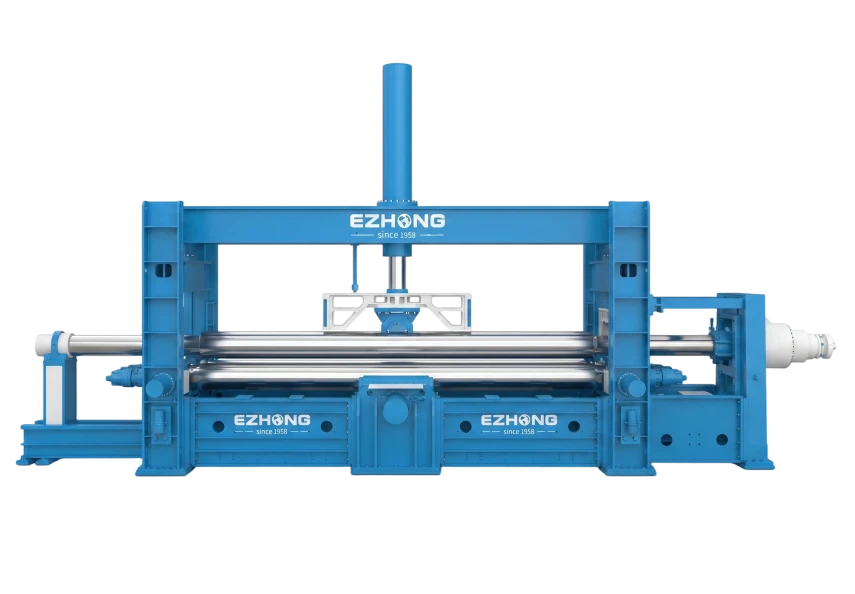

Siemens PLC with touch screen and 8-axis all-digital control featuring absolute displacement sensors ensure precise positioning and fast response. User-friendly controls enable new operators to learn quickly and work efficiently.

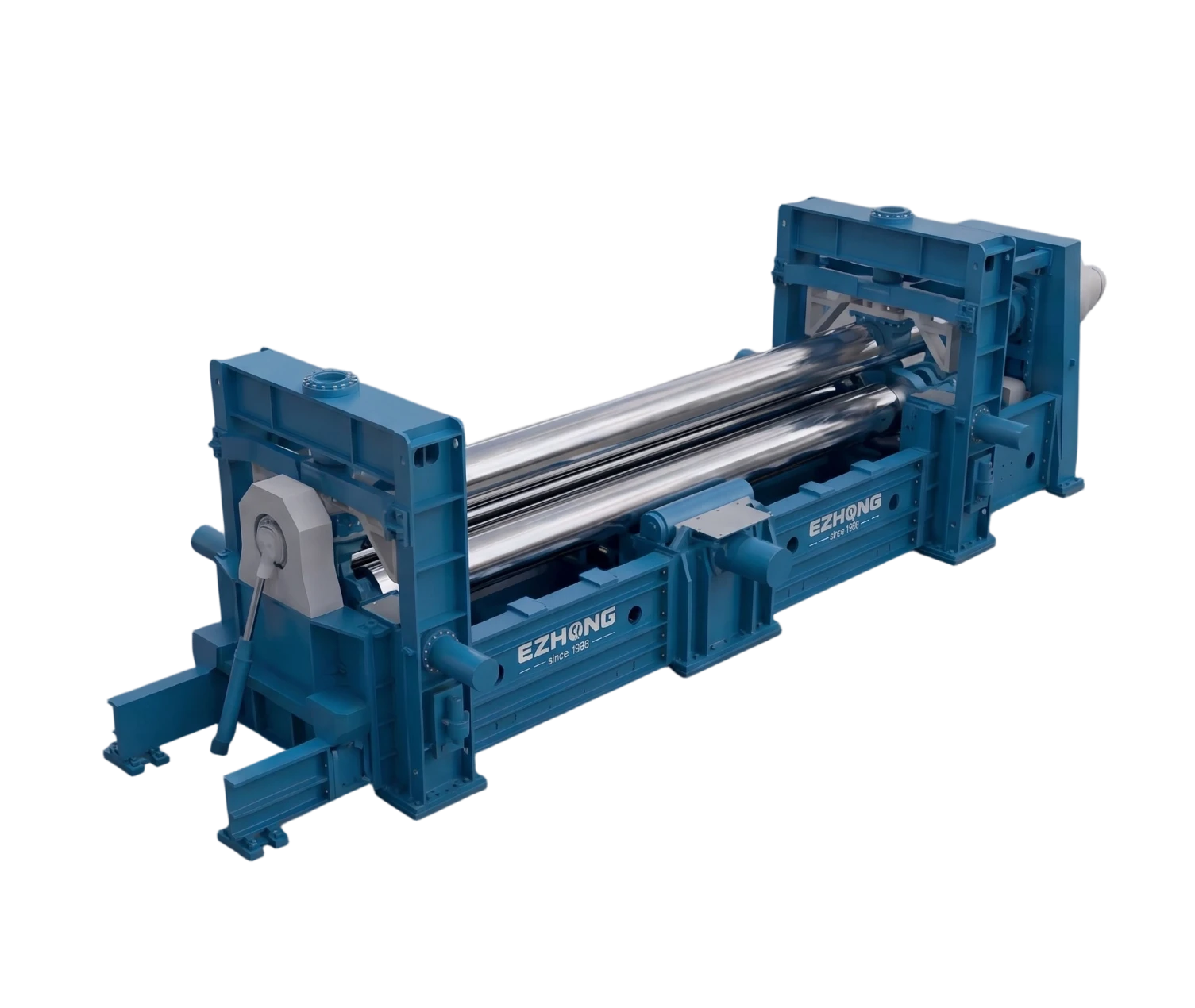

Heavy-duty frame with box-type welded Q345B thick steel plate, stress-relief annealing, and precision machining withstands 1,800T rolling force with no deformation under long-term heavy load. Ensures stable continuous operation across 2–3 shifts.
All three work rolls are driven by full hydraulic motors. Low-speed, high-torque transmission ensures smooth and impact-free operation. Thick plate rolling is stable with no slipping and no trembling.

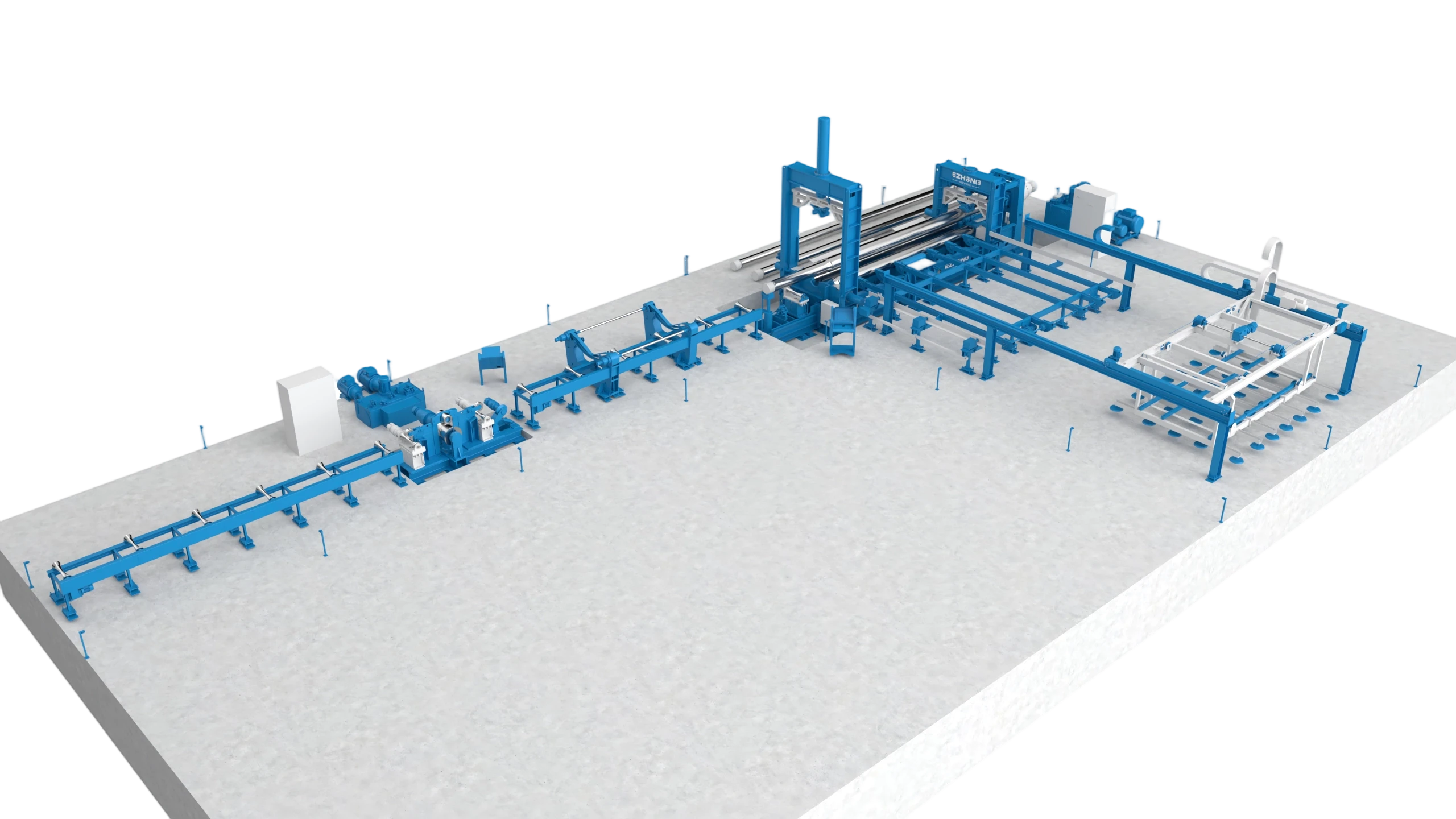

Built for large-diameter LSAW pipes, long-distance oil/gas pipelines, pressure steel pipes, and steel pipe racks. Handles X42–X70 high-strength steel. Integrates rolling, beveling, auto loading/unloading, and continuous forming.
Stable and efficient, it is the foundation of pipe production accuracy.
High-precision forming ensures accurate pipe dimensions, reducing rework and improving welding pass rates.
User-friendly controls with full digital management.
The rigid structure serves as the foundation for heavy-duty, long-hour production.
High-strength stress-relieved steel plate, CNC finish, rigid frame without deflection under 8000T load, horizontal accuracy ±0.5mm full length.
42CrMo forged rollers, mirror polished Ra≤0.4μm, hot rolling version withstands 300°C continuous working temperature.
Variable displacement plunger pump, independent proportional valve control, 2500-4500L oil capacity, 10μm precision filtration.
Siemens S7-1200 PLC, 7-inch bilingual touch screen, LVDT high precision position sensor, IEC standard circuit protection.
| Model | Max Rolling Thickness | Max Working Width | Pipe Diameter Range | Applicable Materials | Maximum Rolling Force | Control System | Rolling Speed |
|---|---|---|---|---|---|---|---|
| EZW12M-25×12000 | 25mm | 12,000mm | Φ16"–48" | X42–X65 High-Strength Steel | 1,200T | Siemens 8-Axis CNC | 1–5m/Min |
| EZW12M-30×12000 | 30mm | 12,000mm | Φ18"–52" | X42–X70 High-Strength Steel | 1,500T | Siemens 8-Axis CNC | 1–4.5m/Min |
| EZW12M-35×12000 | 35mm | 12,000mm | Φ20"–54" | X42–X70 High-Strength Steel | 1,650T | Siemens 8-Axis CNC | 1–4m/Min |
| EZW12M-40×12000 | 40mm | 12,000mm | Φ20"–56" | X42–X70 High-Strength Steel | 1,800T | Siemens 8-Axis CNC | 1–4m/Min |
| EZW12M-45×12000 | 45mm | 12,000mm | Φ24"–60" | X42–X80 High-Strength Steel | 2,000T | Siemens 8-Axis CNC | 1–3.5m/Min |
| EZW12M-50×12000 | 50mm | 12,000mm | Φ24"–64" | X42–X80 High-Strength Steel | 2,200T | Siemens 8-Axis CNC | 1–3m/Min |
Answer a few quick questions to help us recommend the most suitable plate bending machine for your application.
ASTM A516 Gr.70 / 16MnDR, thickness 50-200mm, roundness tolerance ±2mm.
API X80/X120 pipe, thickness 30-150mm, ovality control ±1.5%.
Q345/S355 structural steel, thickness 20-100mm, flat edge tolerance ≤3mm/1000mm.
Q235/A36 storage tank, thickness 8-60mm, high pre-bend accuracy for assembly.
SA516/15Mo3 boiler drum, thickness 40-120mm, precise circularity for flange matching.
304/316L stainless steel cone, 15°~45° adjustable angle, smooth transition surface.
Challenge: Frequent mold changeover caused
production bottleneck.
Solution:
EZW11S-100×3000 VCD CNC model.
Result:
+42% output, scrap rate 15%→3%, payback 14 months.
Challenge: X80 thick plate springback caused
diameter out of tolerance.
Solution:
EZW11X-150×3200 hydraulic pre-discharge system.
Result:
Roundness ±1.2mm, save €180,000 outsourcing cost yearly.
Challenge: Tank shell pre-bend inconsistency
led to welding distortion.
Solution:
EZW11S-60×3000 horizontal pre-bend CNC correction.
Result:
Assembly time -35%, annual capacity 500→650 units.
Challenge: Multi-angle cone shell frequent
mechanical adjustment.
Solution:
EZW11X-200×3200 automatic cone tilt system.
Result:
Setup time 2h→8min, machine utilization 68%→92%.
Minimum diameter varies by model. Entry-level EZW11S-35×2000 achieves 1.5m diameter; heavy-duty EZW11X-200×3200 reaches down to 0.8m. The variable center distance allows 40% reduction versus fixed-geometry machines.
Three independent LVDT position transducers measure upper and lower roller height in real-time. The Siemens PLC compares actual vs. target positions 50 times/second and adjusts hydraulic valve solenoids within ±2mm, maintaining ±0.2mm flatness.
Yes. Standard configuration is for cold rolling (up to 50°C ambient). Hot rolling variant available with 42CrMo rollers rated to 300°C and enhanced oil cooling. Consult engineering for specific hot-roll requirements.
24 months from shipment on parts and labor. Covers manufacturing defects. Consumables (seals, bearings) and routine wear parts excluded. Extended warranty available (36-60 months) at additional cost.
Yes. Optional IoT upgrade adds cloud connectivity. Real-time pressure, temperature, cycle data streamed to EZHONG service portal. Predictive alerts issued 2-4 weeks before component failures (±accuracy 85%).
| Accessory | Lead Time | Function | Value Proposition |
|---|---|---|---|
| Vertical Top Support System | 6 weeks | Support large-diameter coils up to 16m | 150-ton lift capacity, auto tilt with cone angle |
| Lateral Side Support Fixture | 4 weeks | Prevent wide plate lateral drift | Hydraulic automatic correction, match thin sheet processing |
| Automatic Plate Feeding System | 8 weeks | Motorized feeding & positioning | 60% labor saving, positioning tolerance <5mm |
| Hot Rolling Configuration | 10 weeks | 300°C high temperature rolling | Enhanced cooling system, high temperature resistant roller |
| Remote Monitoring & Diagnostics | 6 weeks | Cloud real-time machine data tracking | Predictive maintenance, reduce unplanned downtime 80% |
