A hydraulic press uses pressurized hydraulic fluid to drive a piston or ram, applying controlled compressive force to workpieces. Industrial hydraulic presses range from 50 tons to 5000+ tons and serve applications from bearing assembly to metal forming, straightening, and punching.
Adjustable force from 10%–100% full capacity without tool changes; smooth impact-free pressing motion; long customizable stroke length up to 5m; reversible dual-direction pushing/pulling design; built-in overload relief valve for full workpiece & equipment safety.
We supply two mature mainstream series: EZY92 horizontal axle press covering 2500–10000KN for long shaft & axle assembly, and C-type vertical hydraulic press ranging 200–500T for universal bearing fitting, straightening and stamping workpieces.
If you operate railway vehicle manufacturing & maintenance factories, construction machinery workshops, bearing precision assembly plants, metal fabrication factories or equipment repair service centers—and you require high-precision, adjustable heavy pressing equipment for axle fitting, gear assembly, shaft straightening and disassembly work. EZHONG provides fully customized hydraulic press solutions matching your required tonnage, stroke length, workpiece size and automatic control demands, with horizontal long-bed and compact C-frame two structural options for all industrial assembly scenarios.
Select horizontal long-bed axle press or compact C-frame press according to your workpiece length, assembly process and site space
Compare core specifications of horizontal axle press and C-frame vertical hydraulic press for your selection reference
| Feature | Horizontal Axle Press EZY92 | C-Frame Hydraulic Press C-Type |
|---|---|---|
| Model Designation | EZY92 Series | C-Type Series |
| Pressure Capacity | 2500–10000 KN (250–1000T) | 200–500T (2000–5000 KN) |
| Machine Structure | Horizontal long-bed frame | Vertical open C-shaped frame |
| Stroke Length | Customizable 0.5m–5m+ | Standard 0.5m–2m |
| Press Direction | Dual-direction (press & extract) | Single adjustable direction |
| Occupied Space | Large floor footprint | Compact space-saving design |
| Single Cycle Time | 2–5 minutes per assembly | 1–3 minutes per workpiece |
| Control Modes | Manual, semi-auto, proportional servo | Manual, proportional, CNC upgrade available |
| Force Precision | ±1% full tonnage range | ±1% full tonnage range |
| Main Applications | Railway vehicle, heavy machinery long axle assembly | Bearing fitting, universal metal pressing & straightening |
| Details Page | View → | View → |
Equipped with servo proportional directional valve and pilot operated pressure relief valve, stable pressure output within ±1% error during full ram stroke. Effectively avoid over-pressing deformation or insufficient assembly force on precision workpieces.
EZY92 horizontal axle press supports reversible ram movement: forward stroke completes wheel & axle assembly, reverse stroke realizes wheel extraction. One machine finishes both production and maintenance disassembly procedures to save equipment investment cost.
Different from standard fixed-stroke catalog presses, all EZY92 horizontal axle presses are customized according to customer actual workpiece length. Long-stroke design adapts super-long railway axles and large engineering machinery shafts, improving production versatility greatly.
Independent hydraulic oil cooler keeps system operating temperature below 50°C; temperature sensor triggers alarm at 60°C to stop overheating damage. Stable hydraulic temperature ensures 99% uptime and extended service life of seals and hydraulic components.
Wheel-shaft interference assembly, axle pressing, coupling mounting and wheel disassembly repair.

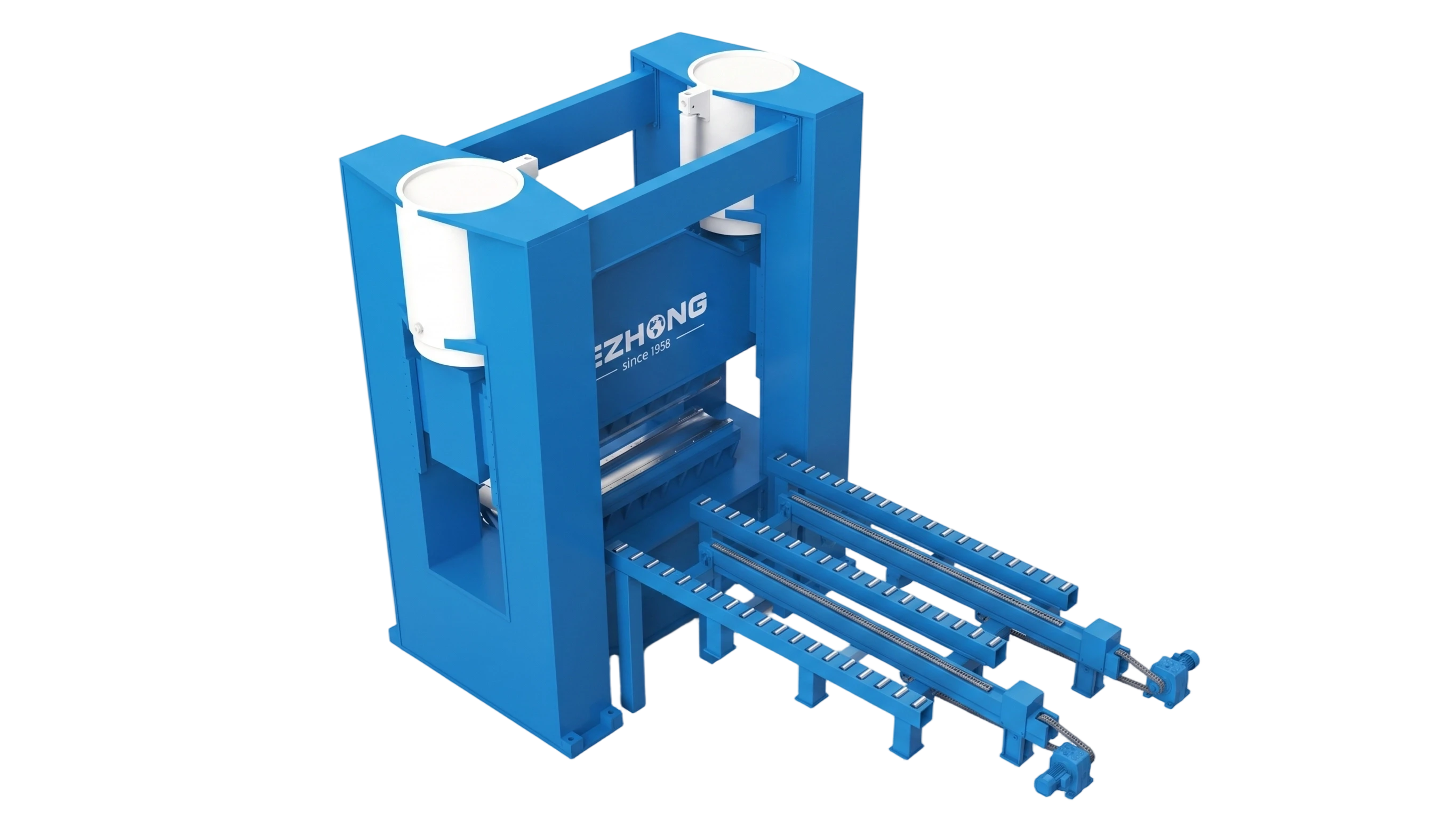

Axle assembly, planetary gearbox pressing for excavators, cranes and loaders.

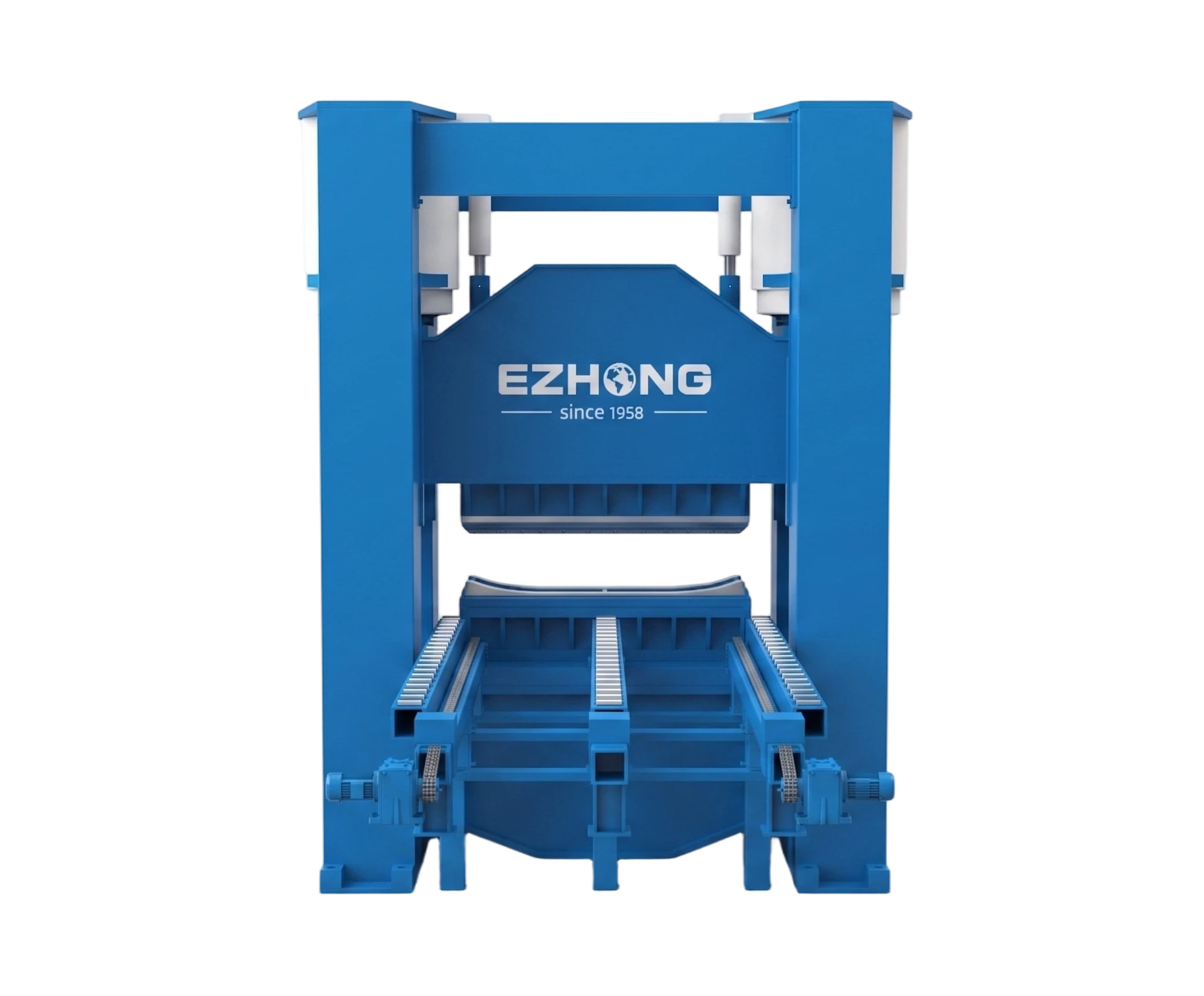

Precision bearing interference fitting, gear assembly, shaft coupling pressing process.

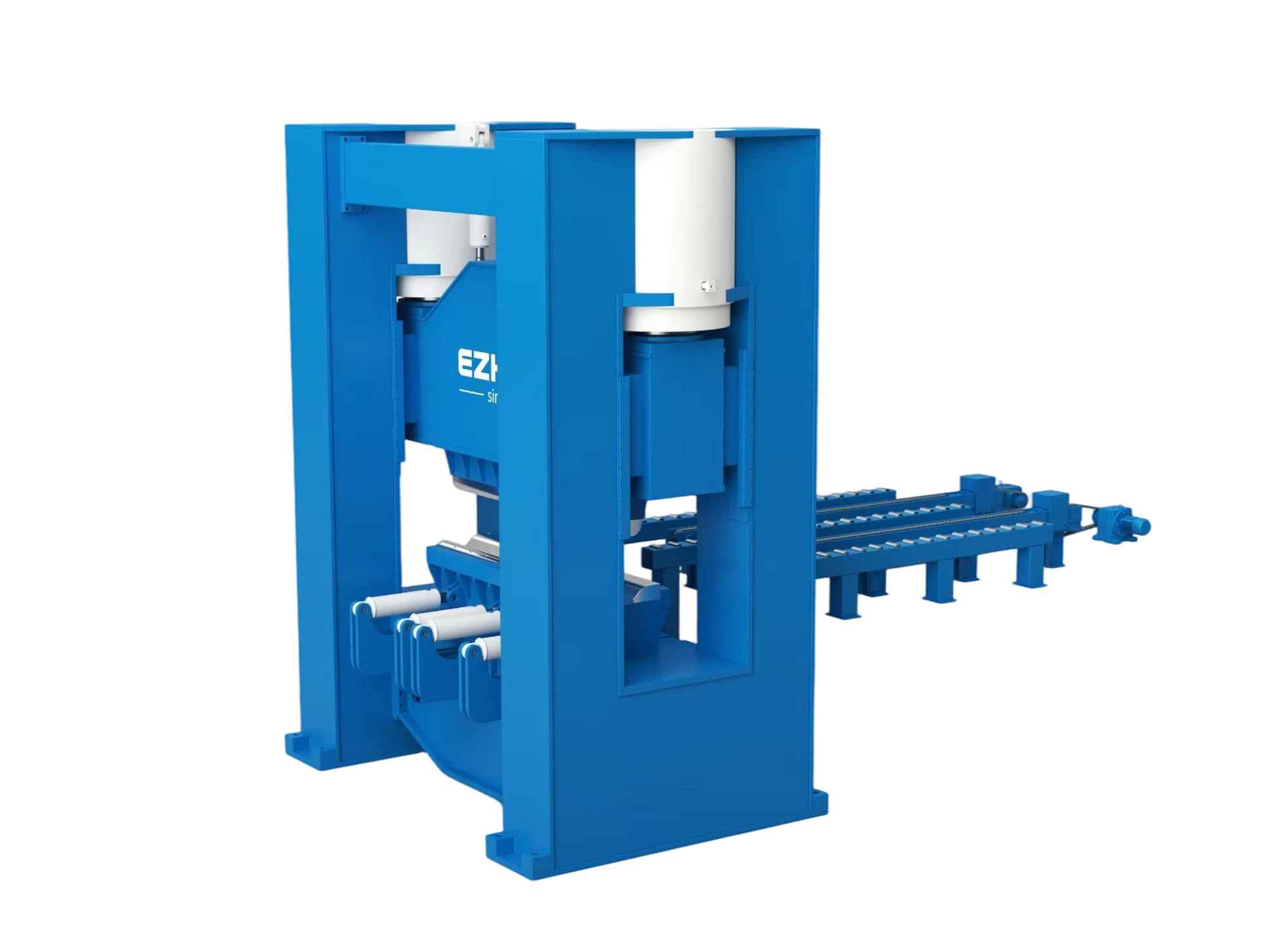

Shaft straightening, metal stamping, coining, embossing and forming processing.

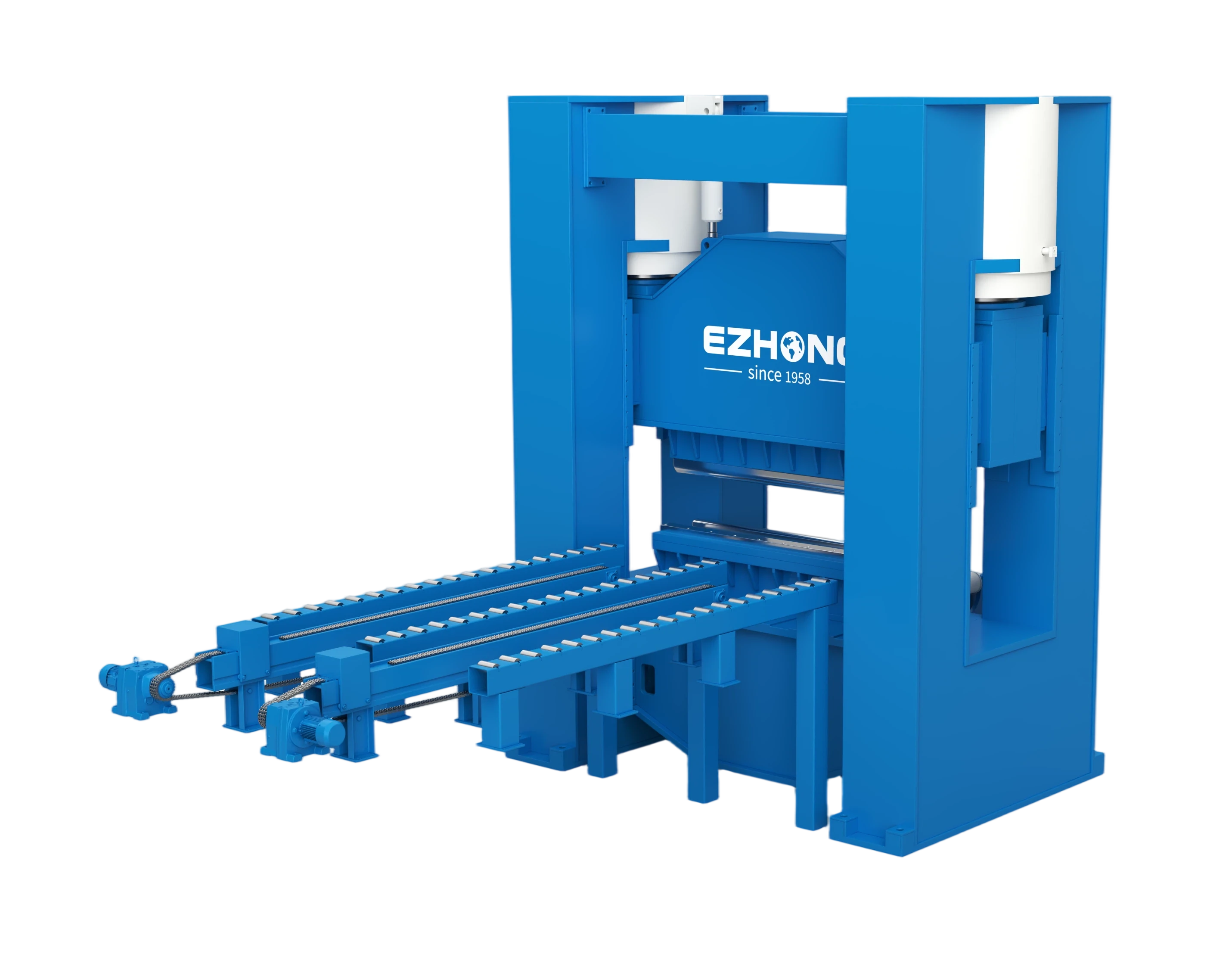

Multi-purpose pressing equipment for mechanical parts disassembly and reassembly repair.
Hydraulic press supports stepless adjustable force, customizable long stroke, reversible bidirectional movement and smooth constant pressing force. Mechanical press owns fixed tonnage and single direction ram only. Hydraulic presses fit custom assembly & forming; mechanical presses suit high-speed mass stamping production.
Yes, full customization available. Send us workpiece dimension, required pressing tonnage, target stroke length and automatic control requirements, our engineering team finishes CAD drawing and formal quotation within 1 working week.
Daily: Check hydraulic oil level, seal leakage and pressure gauge reading. Weekly: Complete empty test cycles. Monthly: Replace oil filter under dusty environment. Quarterly: Full machine structure & hydraulic pipeline inspection. Annual: Hydraulic oil quality analysis, service life of hydraulic oil is 3–5 years normally.
Standard stock hydraulic press models: 8–12 weeks production lead time. Fully customized non-standard design: 12–16 weeks manufacturing cycle. After delivery to your factory, our engineer spends 2–3 weeks on-site installation, commissioning and operator training.
