Advanced Plate Rolling Solutions for Onshore & Offshore Wind Towers
EZHONG provides heavy-duty plate rolling and forming solutions for wind energy equipment manufacturers, enabling precise fabrication of wind tower sections, foundation monopiles, transition pieces, and other large cylindrical structures. With decades of experience in heavy plate forming, EZHONG machines are designed to process high-strength steel plates, large diameters, and demanding wind power manufacturing requirements, ensuring excellent roundness, welding quality, and structural reliability for modern wind energy projects.
● Large diameters up to 16 meters
● Heavy plate thickness for offshore and foundation structures
● High-strength steels with yield strength up to 690 MPa and above
● Strict requirements for roundness, welding alignment, and assembly accuracy
Whether producing onshore wind towers, offshore tower sections, monopile foundations, or transition structures, stable plate forming is essential to ensure safe operation throughout the equipment lifecycle.
Modern wind energy structures increasingly use high-strength steel grades to reduce weight while maintaining structural performance. These materials require powerful forming capacity and optimized rolling processes.
Large wind tower sections require accurate cylindrical geometry to guarantee: Proper flange connection, Welding quality, Tower section alignment, Structural stability. Poor roundness can lead to difficulties during assembly and increased welding correction work.
Thick plates and high-strength materials are sensitive to deformation and springback during forming. A stable rolling process is essential to achieve consistent geometry and reduce post-processing.
Wind tower manufacturers need reliable equipment capable of continuous production while reducing manual adjustment and improving manufacturing efficiency.
EZHONG provides customized plate rolling solutions specifically developed for large-scale wind tower and offshore wind structure production.
EZHONG heavy-duty 3-roll and 4-roll plate rolling machines are capable of processing:
● Thick steel plates
● High-strength materials
● Large diameter cylindrical sections
Suitable for wind tower shells, monopiles, transition pieces, and other heavy cylindrical components.
Advanced hydraulic systems, rigid machine structures, and optimized rolling processes help achieve:
● Excellent roundness control
● Stable plate forming
● Reduced correction work after rolling
Machines can be configured according to:
● Plate thickness
● Plate width
● Material grade
● Tower diameter
● Production capacity requirements
Supporting both customized manufacturing and large-scale production lines.

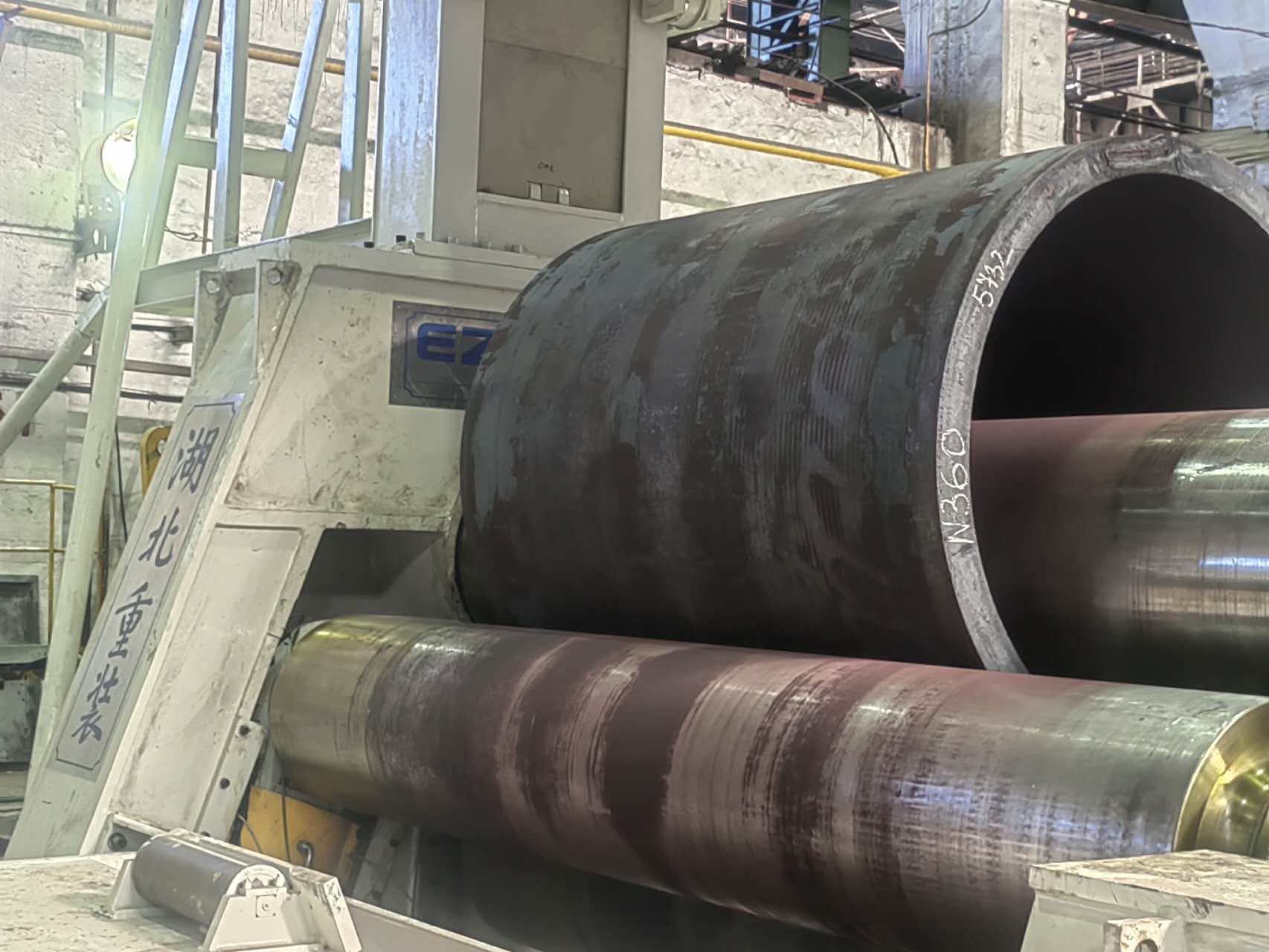

Recommended for:
● Offshore wind towers
● Heavy plate applications
● High-strength steel forming
Advantages:
● High automation level
● Excellent pre-bending capability
● Accurate cylindrical forming
● Reduced operator dependence

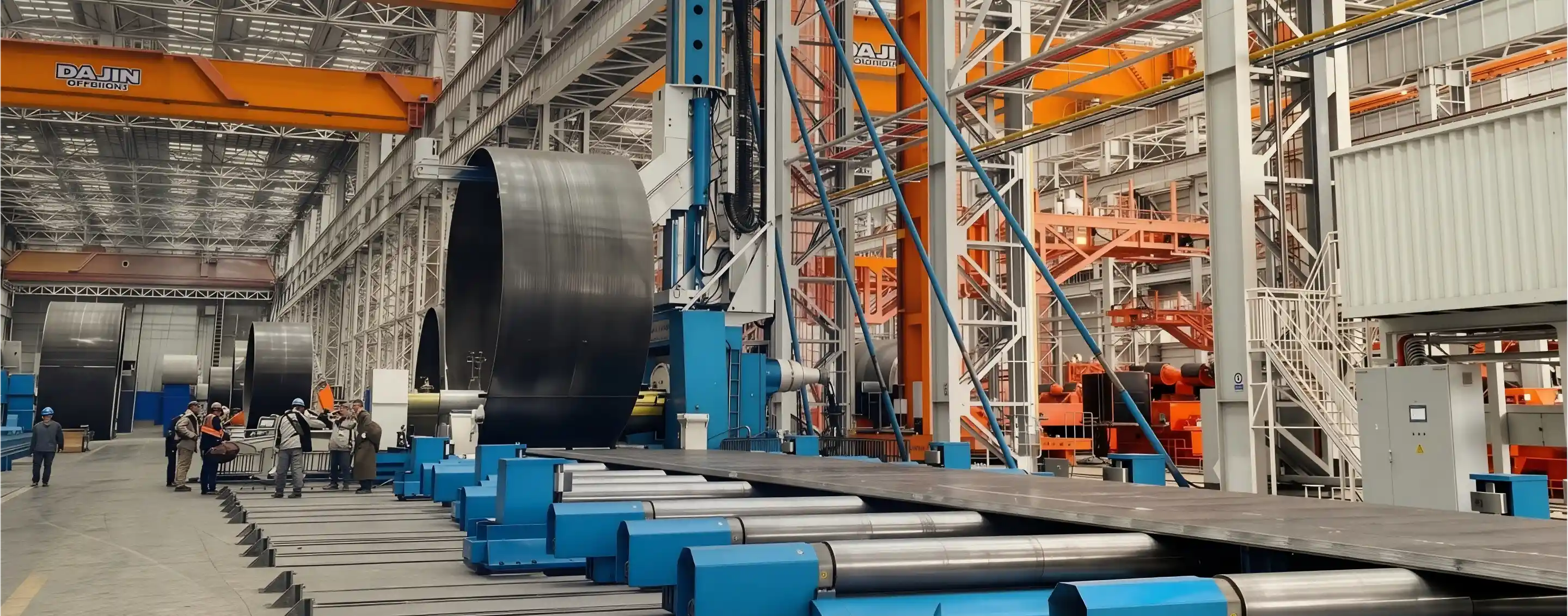

Recommended for:
● Large diameter wind tower sections
● Monopile foundations
● Heavy steel structures
Advantages:
● Extremely strong rolling capacity
● Suitable for oversized workpieces
● Reliable operation for heavy industries

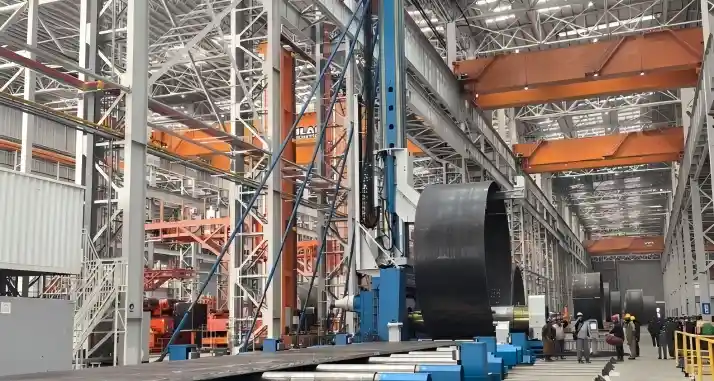

Rolling steel plates into cylindrical tower segments for:
Suitable for manufacturing:
Applications include:
EZHONG plate rolling machines have been widely applied in industries requiring large-scale cylindrical forming, including:
● Wind power equipment manufacturing
● Shipbuilding
● Pressure vessel production
● Heavy steel fabrication
● Energy equipment manufacturing
Our machines support manufacturers worldwide in producing large diameter and high-strength steel components with reliable forming performance.
EZHONG wind tower equipment achieves ±0.5° cone angle tolerance. The integrated cone-blocking mechanism maintains angle drift within ±0.3° under full load. This precision ensures zero radial runout issues (typically <0.5mm at diameter). Compared to traditional cone-rolling equipment (±1.5-2.0° variance), EZHONG's precision eliminates downstream assembly problems and reduces scrap from improper cone geometry.
Three factors enable ±0.5mm precision: (1) Deflection Compensation — 4-7 independent backup support rollers on upper/lower beams automatically adjust via proportional hydraulic cylinders, maintaining linear straightness across full width. (2) Synchronized Dual Lower-Roller Drive — each lower roller independently controlled with torque balance <±1%, eliminating asymmetric pressure spikes. (3) Real-Time Pressure Monitoring — four independent pressure transducers feed PLC algorithm, which adjusts proportional valve position 50x/second to maintain ±3 bar pressure stability.
Typical ROI timeline: 14-18 months. Upfront investment: €280K. Annual operating savings: €180K (€85K labor + €95K material reduction). Year 1: -€280K + €180K = -€100K (investment phase). Year 2: €180K - €50K (maintenance) = €130K. Payback: Month 18-20. Break-Even Analysis: Required production increase 140 towers/year (vs. 80 with traditional). Revenue per tower: €18K-22K. Additional revenue Year 1: 60 towers × €20K = €1.2M. Payback driver: Production capacity increase (not just cost savings).
Yes. The machine includes 50+ pre-programmed turbine profiles stored in CNC memory. Changeover process: (1) Operator selects turbine model from HMI dropdown (e.g., "Vestas V80-2.0MW"). (2) CNC automatically loads: target diameter, cone angle, pressure curve, rolling speed, center distance. (3) Auto-gap-adjustment scans incoming plate, confirms parameters. (4) Press "Start" — machine auto-executes entire rolling cycle. Changeover time: 5 minutes vs. 45 minutes manual recalibration. Supported Models: Vestas, GE, Siemens Gamesa, NREL standards (1.5-5.0 MW range).
All standard wind tower steels supported: Q345 (recommended 40-60 MPa working pressure), Q420 (recommended 50-75 MPa working pressure), API 5L X65 (recommended 30-50 MPa for soft-steel applications). The CNC system automatically selects optimal pressure curve per material grade. First test piece verified by operator, then curve locked for batch production. Material Compatibility: 99.2% first-pass acceptance across all supported grades.
Preventive Maintenance: Every 500 operating hours (typically 3-4 weeks at continuous 2-3 shift operation). Service Components: Hydraulic oil & filter change (€2,500), Bearing re-lubrication (€800), Pressure valve calibration (€1,200), Seal inspection & replacement (€1,500). Total per service: €6,000. Annual cost (2 services): €12,000. Warranty Coverage: 2-year full parts/labor warranty, extends to 5 years with maintenance contract.
Standard Training: 3 days on-site (included with equipment purchase). Training covers machine startup/shutdown procedures, HMI operation & profile selection, safety protocols & emergency procedures, basic troubleshooting, and maintenance procedures. Operator Qualification: High school diploma, basic mechanical knowledge minimum. No specialized CNC experience required (simplified interface). Most operators independent after 5-10 production runs. Compared to Traditional: 60% reduction in training time (3 days vs. 8 weeks for manual equipment operation).
3-Roll (EZHONG): ±0.5mm precision, optimized for rolling (bending), 200+ towers/year. 4-Roll Levelers: ±0.8-1.0mm precision, optimized for correction (flattening), 80-100 towers/year. When to Use: EZHONG 3-Roll for primary tower section manufacturing (as-rolled geometry precision critical). 4-Roll Leveler for post-welding correction (if additional straightness needed after seam assembly). Most customers use EZHONG exclusively because first-pass ±0.5mm precision eliminates post-weld leveling need entirely.
Whether you are manufacturing onshore wind towers, offshore monopiles, or large welded cylindrical structures, EZHONG can provide a customized plate rolling solution based on your material, size, and production requirements. Contact EZHONG engineers today to discuss your wind energy manufacturing project.
