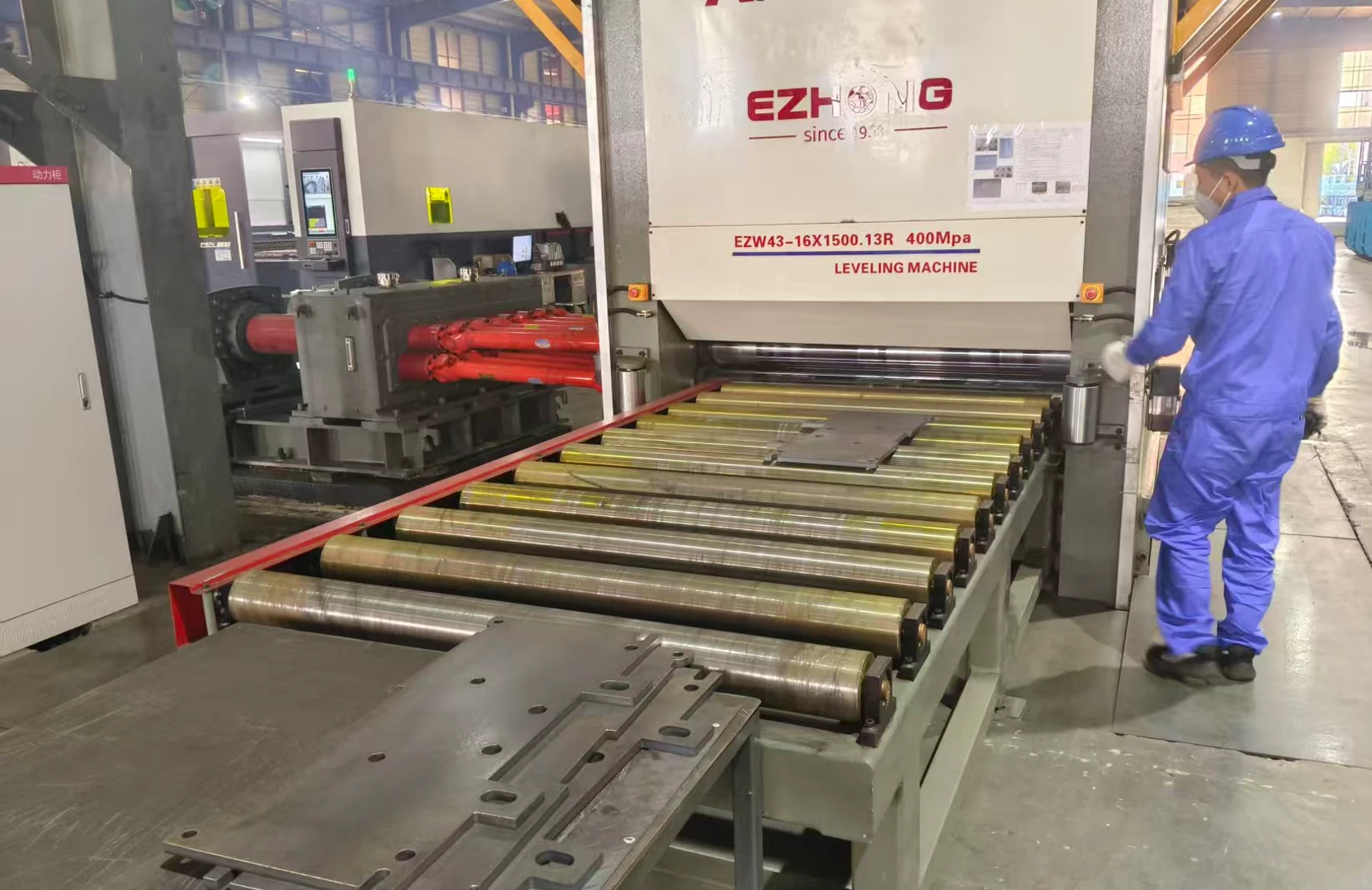

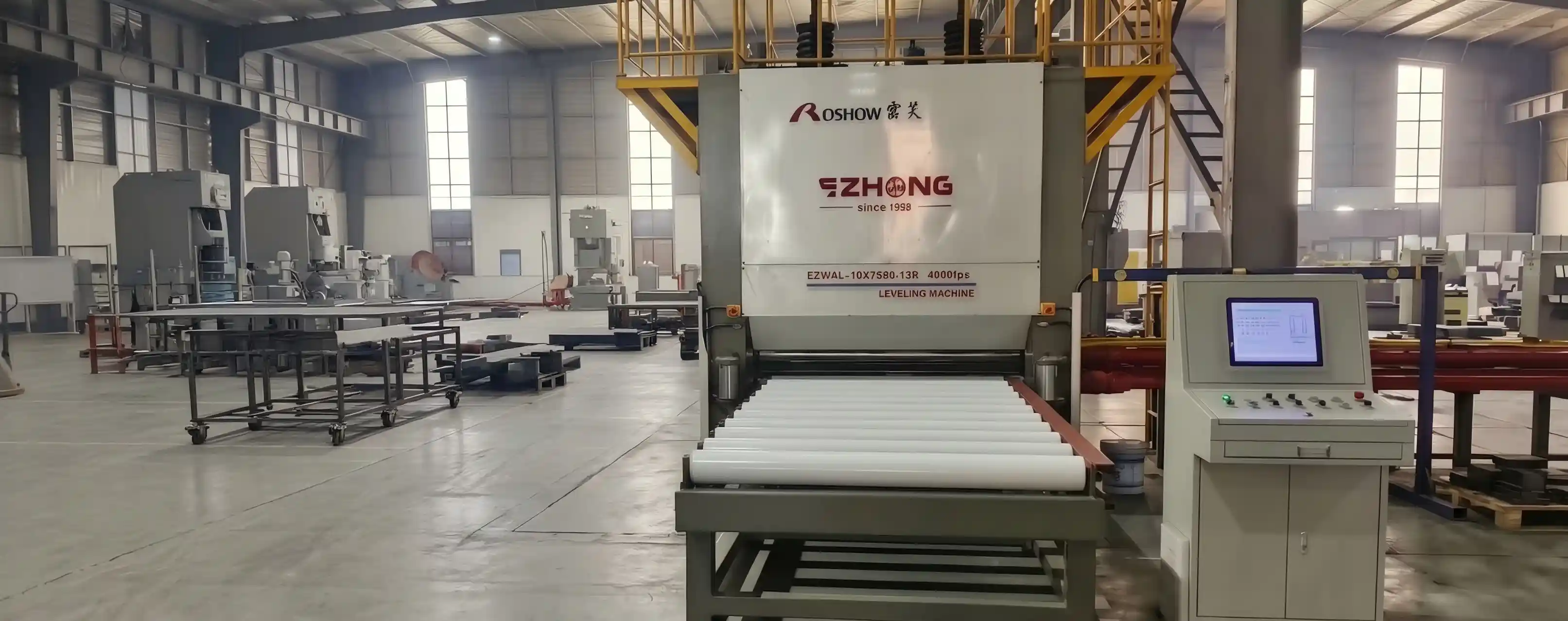

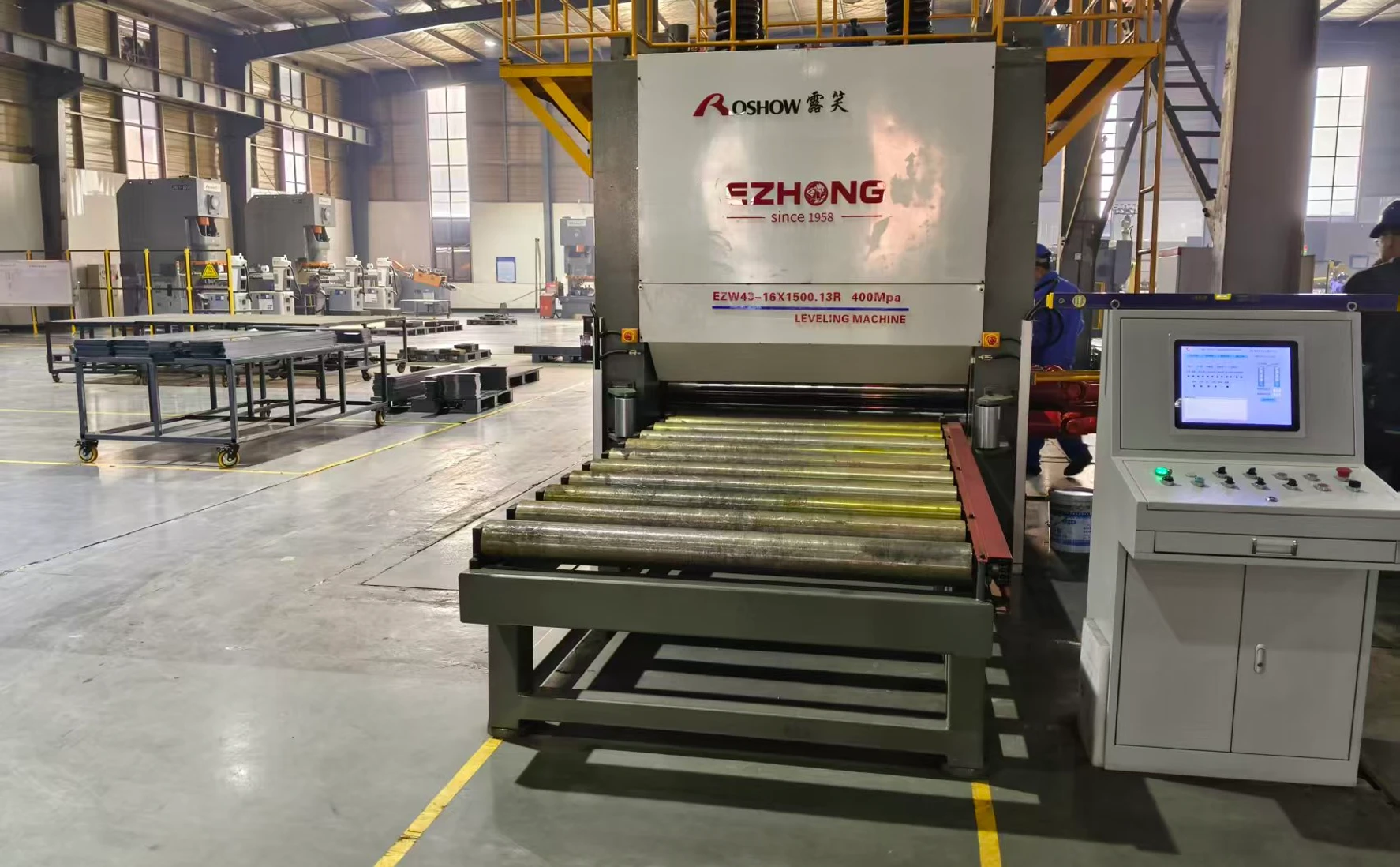

Designed specifically for 960-1100MPa materials (Q345, Q420, HG785). Dual-motor pressure-reduction system handles extreme elastic springback. Non-parallel roller arrangement with adjustable edge rollers compensates for material hardness variation.
Two independent motors drive pressure-reduction via independent worm-gear reducers. Simultaneous motor operation achieves parallel beam descent; independent motor operation enables asymmetric tilt. Resolves thick-plate loading difficulty and elastic recovery challenges.
Automatic roller count adjustment per plate thickness. Thin plates (3-8mm) activate all rollers for precision; thick plates (40-60mm) reduce roller count to increase support span. Extends equipment service life while optimizing energy consumption.
Upper and lower edge rollers independently adjustable via proportional cylinders. Eliminates edge-wave defects common in traditional equipment. Creates uniform stress distribution across full plate width.
Two independent electric motors drive main roller system through dual-input planetary reducers. Eliminates torque ripple, improves transmission efficiency, reduces noise. Ideal for continuous heavy-equipment production.
PLC system stores 500+ engineering-machinery component profiles. Operator selects component type; machine automatically calculates pressure curve, roller configuration, tilt angle. Setup time <5 minutes vs. traditional 45 minutes manual adjustment.

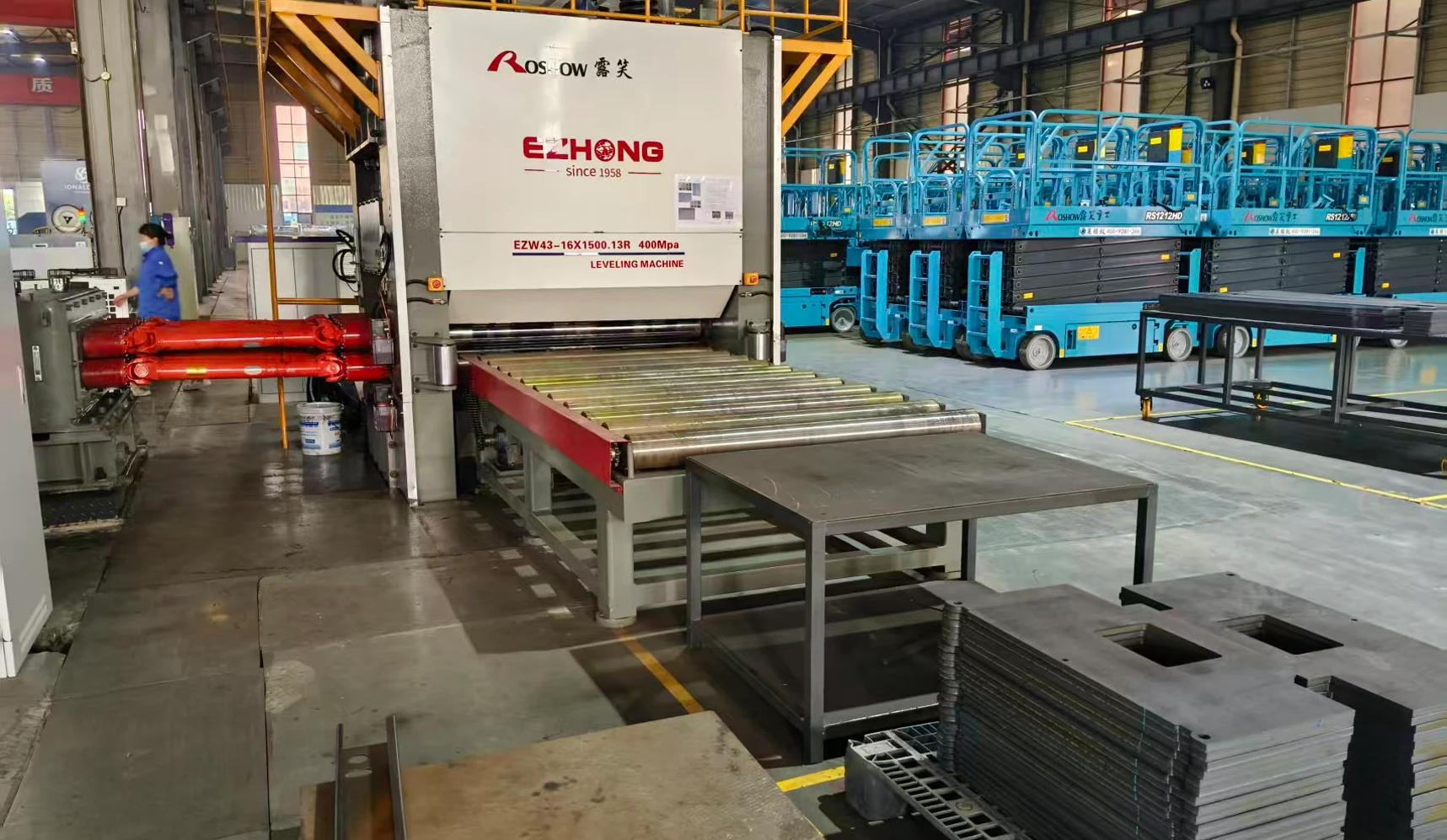

Two 5.5-7.5 kW motors drive independent worm-gear reducers. Synchronized operation: both motors lift cross-beam smoothly (pressure reduction). Asynchronous operation: motors lift/lower independently, enabling cross-beam tilt (±7mm angular adjustment) for single-side wave correction.

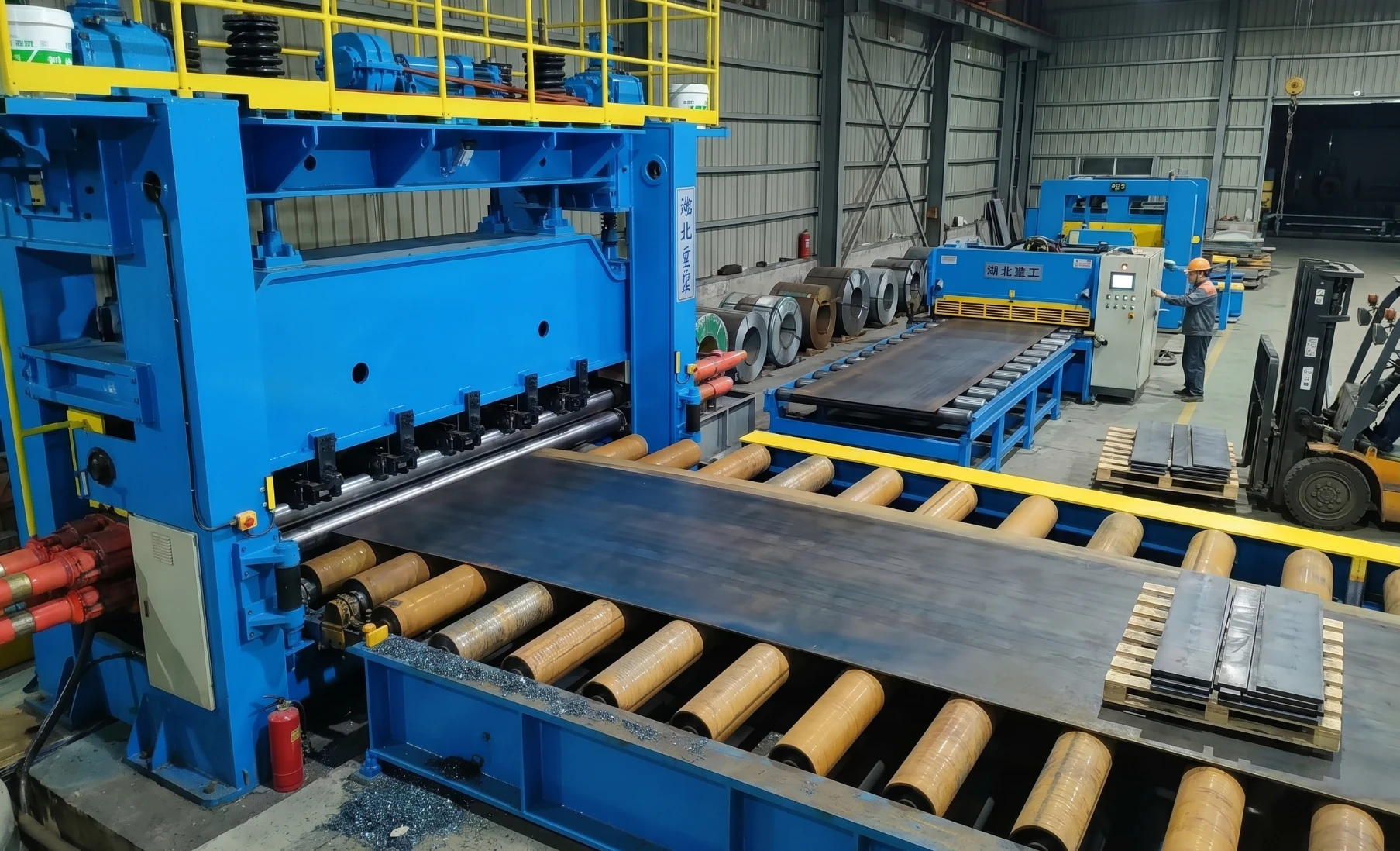

Hydraulic cylinders control individual roller engagement. Thin-plate mode: all 13 rollers active (maximum precision). Thick-plate mode: 9 rollers active (increased span, reduced bending moments). Automatic mode-switching based on incoming plate thickness measurement.
Two independent 45-75 kW motors (model dependent) coupled to main roller system via planetary reducers + flow divider valve. Each motor powers subset of working rollers. Eliminates traditional cross-shaft, reducing torque ripple from ±8% to <±1%.
Database stores 500+ component profiles pre-programmed by engineering team. Operator selects component on HMI; system automatically sets inlet/outlet pressure, roller engagement pattern, tilt angle, and cross-beam descent speed.

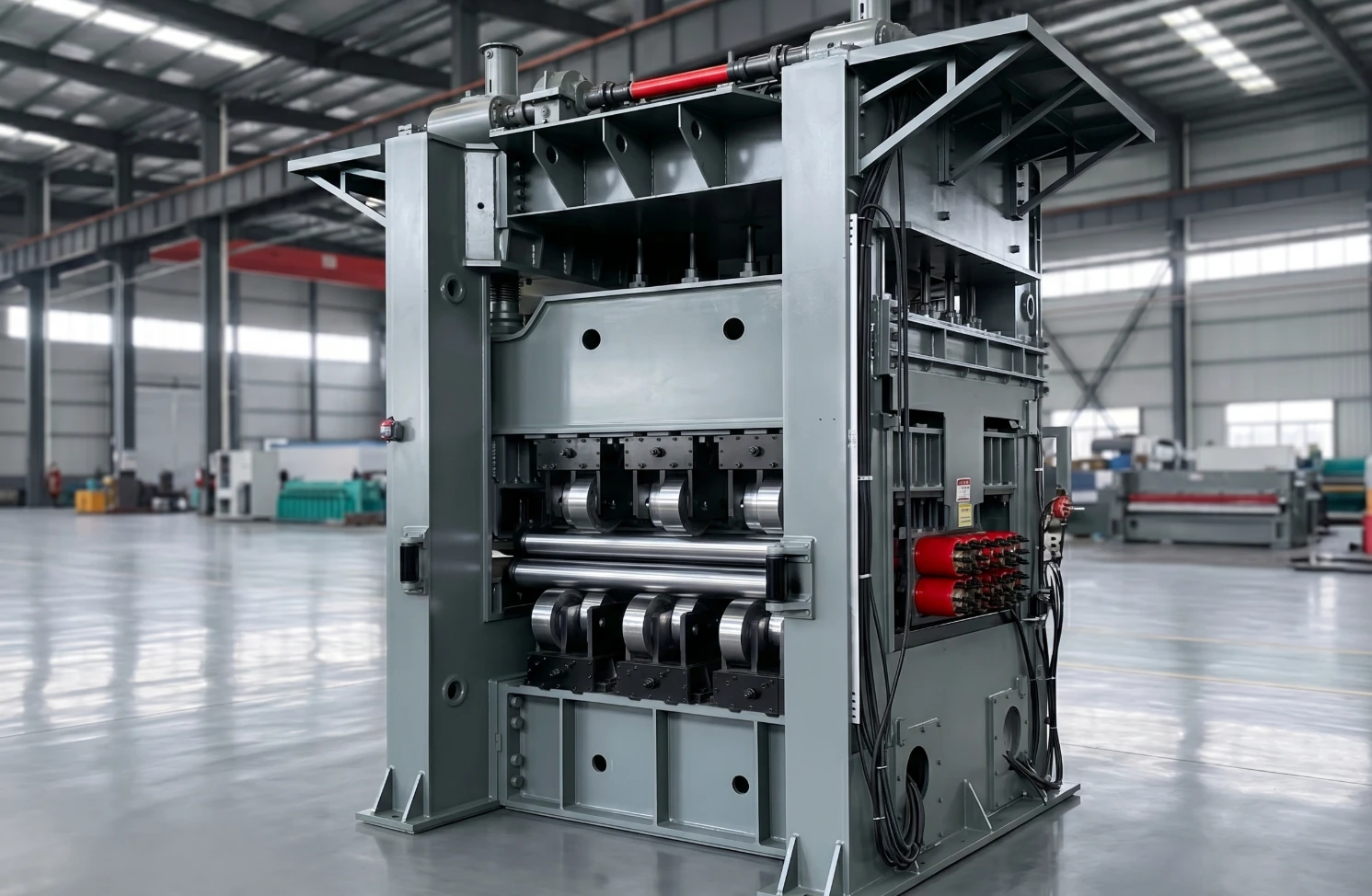

Upper and lower edge rollers independently adjustable via proportional hydraulic cylinders. Creates asymmetric pressure field targeting specific defect patterns: single-side edge wave, center-wave, or combination defects with automatic tilt + edge adjustment.
Q345 high-strength structural steel, closed-box welded construction, fully stress-relieved. Rigidity deflection <0.8mm under maximum composite bending load. Integrated elastomer pads reduce vibration.
2 independent motors (45-75 kW each), dual planetary reducers (ratio 1:75). Flow divider maintains ±3% load balance. 94% power transmission efficiency. Pressure-reduction motors 5.5-7.5 kW with worm-gear reducers, ±7mm angular adjustment.
42CrMo forged steel rollers, hardness HRC 50-55 surface, diameter 280-400mm. 13 SAI hydraulic motors with individual planetary reducers (ratio 1:75). Independent bearings per roller for modular replacement.
Hydraulic cylinders with wedge positioning, adjustment range 9-13 active rollers. Siemens S7-1200 PLC with 10-inch touchscreen. Ultrasonic detection unit, emergency stops at 4 locations. Response time <3 seconds mode switching.
| Model | Max Thickness (mm) | Plate Width (mm) | Yield Limit (MPa) | Working Rollers | Main Motor Power (kW) | Precision (mm/m²) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|
| EZW43-40×2000 | 40 | 2000 | 960 | 11 | 45×2 | 0.8 | 5800×2400×2700 |
| EZW43-50×2500 | 50 | 2500 | 960 | 13 | 55×2 | 0.8 | 6400×2800×2900 |
| EZW43-60×3000 | 60 | 3000 | 960 | 13 | 75×2 | 0.8 | 7000×3100×3000 |
| EZW43T-40×2000 | 40 | 2000 | 1100 | 11 | 55×2 | 0.7 | 5900×2400×2800 |
| EZW43T-50×2500 | 50 | 2500 | 1100 | 13 | 75×2 | 0.7 | 6500×2800×3000 |
| EZW43T-60×3000 | 60 | 3000 | 1100 | 13 | 90×2 | 0.7 | 7100×3100×3100 |
Material: Q345, Q420 high-strength steel; Thickness: 30-60mm; Key requirement: straightness ±3mm, weldability preserved.
Material: Q345, Q420; Thickness: 40-60mm; Key requirement: fatigue-resistant geometry, no internal stress concentration.
Material: Q420, HG785; Thickness: 25-50mm; Key requirement: dimensional accuracy ±2mm, support structural load.
Material: Q345, Q420; Thickness: 30-60mm; Key requirement: precision alignment for welding, no deflection under load.
Material: Q420, specialty high-strength alloys; Thickness: 40-80mm; Key requirement: uniform stress distribution, minimal residual stress.
Material: Q345, abrasion-resistant steel; Thickness: 50-80mm; Key requirement: impact resistance, dimensional stability.

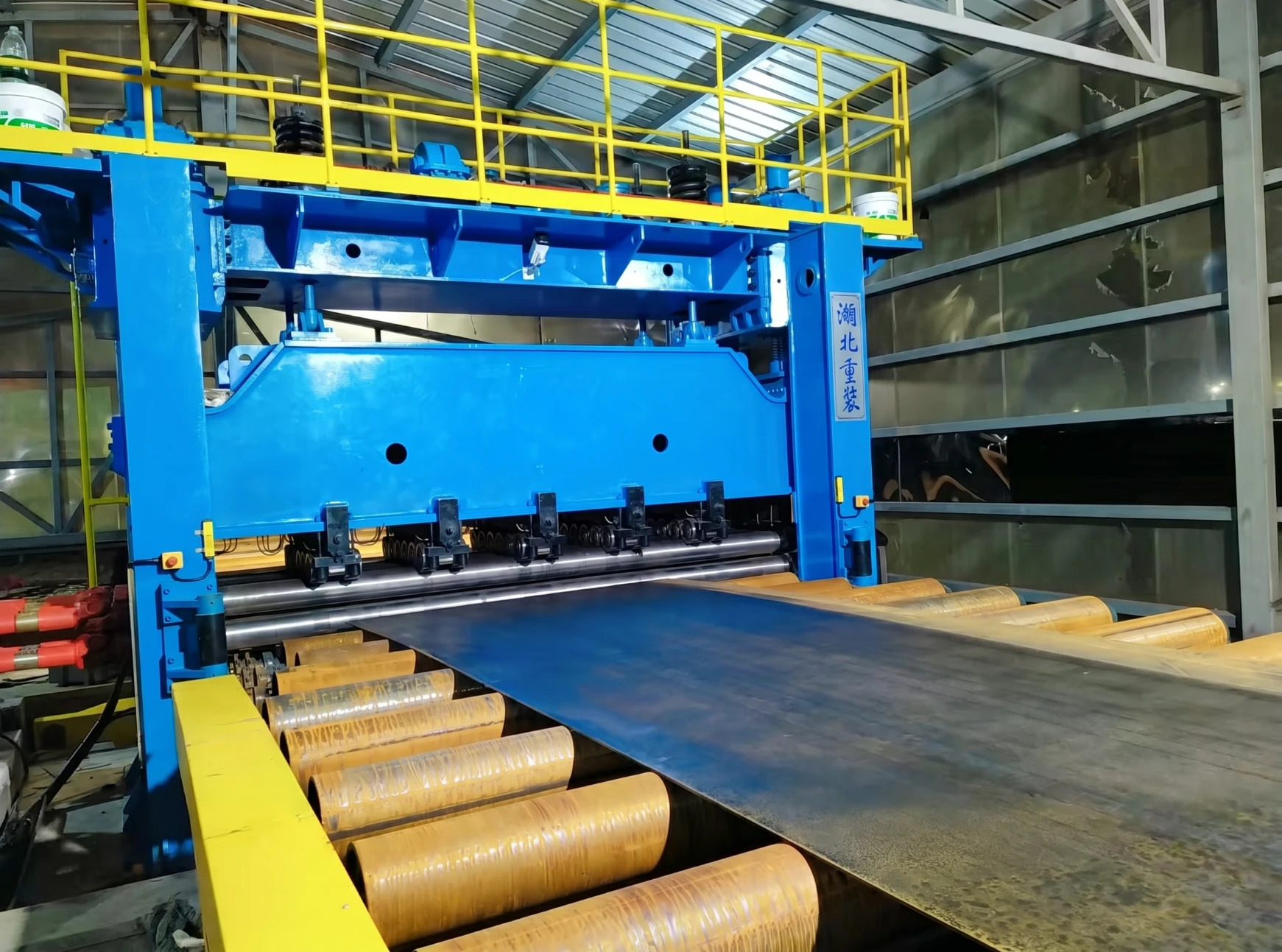

Challenge: Excavator boom components (50mm Q420) showing ±4mm curvature. Previous equipment setup 45 minutes per batch change.
Solution:
EZW43T-50×2500 with automatic parameter memory + dual-motor tilt system.
Result:
Straightness improved to ±1.0mm; setup time reduced to <5 min; scrap rate from 8% to 0.8%; annual savings €320K.

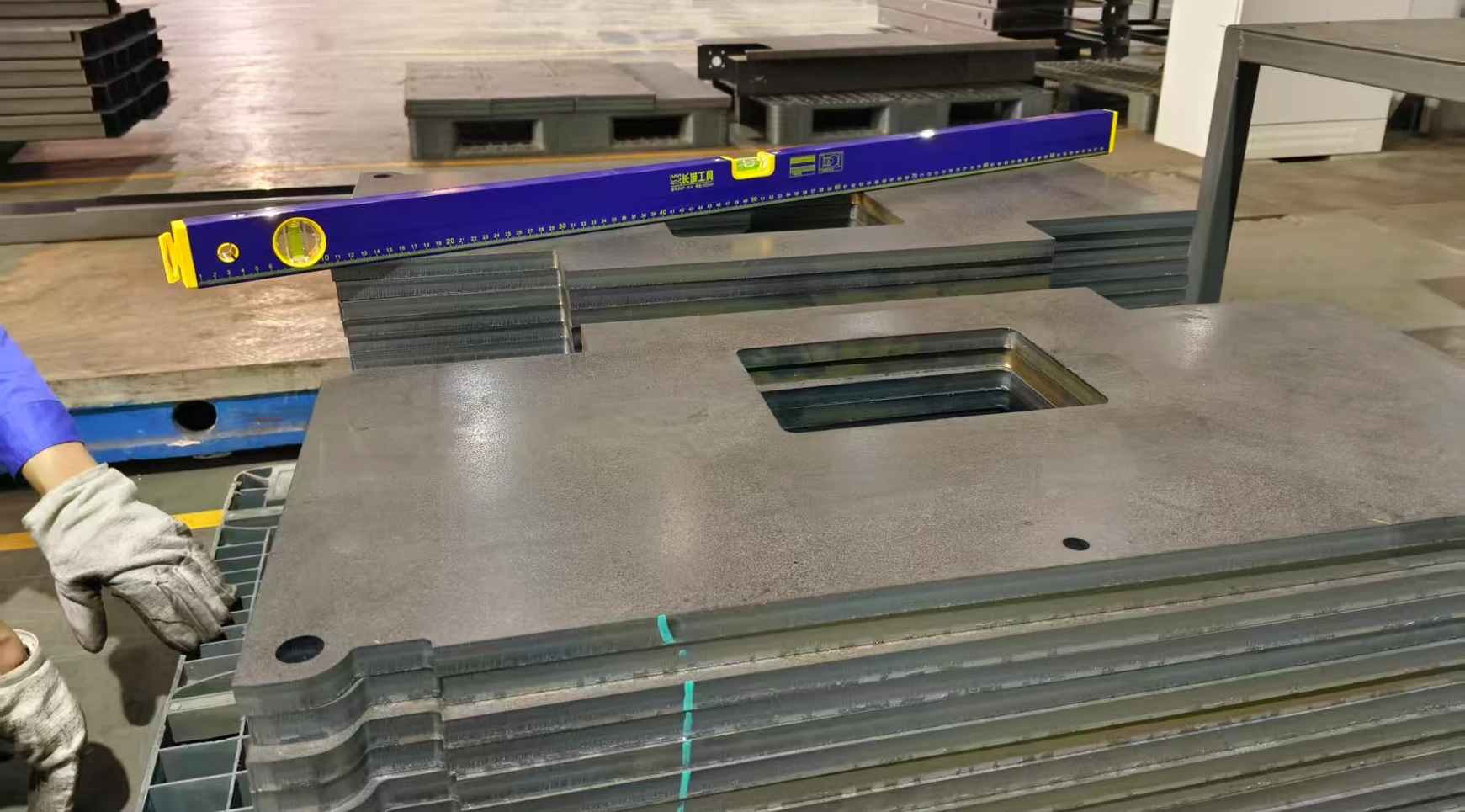

Challenge: Mixed-model production (8 different boom designs). Manual tilt adjustment imprecise; operator-dependent quality variance 18%.
Solution:
EZW43T-60×3000 with automated edge-roller adjustment + tilt algorithm.
Result:
Quality variance reduced from 18% to <3%; productivity +25%; new operators independent in 1 week; payback 14 months.
Challenge: High-strength steel (1100MPa) crane boom sections. Elastic springback caused ±5mm diameter variance; 12% rework rate.
Solution:
Custom EZW43T-60×3000 with enhanced pressure-curve optimization + real-time springback compensation.
Result:
Diameter tolerance improved to ±1.2mm; rework rate reduced from 12% to 0.5%; production efficiency +40%.
Challenge: Large-format dozer blade frames (60mm Q345) with inconsistent flatness across 3000mm width.
Solution:
EZW43-60×3000 with dual-motor synchronized control + variable roller-number technology.
Result:
Flatness tolerance improved from ±2.5mm to ±0.8mm/m²; throughput +30%; downtime reduced 35%.
Variable systems activate 9 rollers for thick plates (reduced cycling, extended bearing life) and 13 rollers for thin plates (increased precision). Fixed 13-roller equipment runs all rollers regardless of plate thickness, causing unnecessary wear on thick-plate production.
Two independent motors enable synchronized descent (both motors up = parallel beam rise) or asynchronous movement (motors independent = beam tilt for wave correction). Single-motor systems can only do parallel adjustment, limiting wave-correction capability.
Yes. Database stores 500+ component profiles. Operator selects component type on HMI; machine automatically loads all parameters (pressure curve, roller configuration, tilt angle). Changeover <5 minutes vs. 45 minutes manual setup.
500 operating hours recommended (typically 2-3 weeks at continuous operation). Service includes: hydraulic oil change, bearing re-lubrication, pressure valve calibration, seal inspection. Full PM requires 12-16 hours.
| Accessory | Lead Time | Function | Value |
|---|---|---|---|
| Automatic Material Feeding System | 8 weeks | Auto-loading, -40% operator labor | Improves throughput 20%, eliminates loading errors |
| In-Line Flatness Measurement | 10 weeks | Real-time quality feedback | ±0.3mm accuracy, auto-correction capability |
| Advanced SPC Software | 5 weeks | Quality tracking, control charts | Enables batch acceptance/rejection decision support |
| Automatic Tilt Correction Algorithm | 6 weeks | Servo-based edge adjustment | Auto-corrects wave patterns, ±0.5mm precision |
| Remote Diagnostics | 6 weeks (€10K/year) | Cloud monitoring, predictive alerts | Prevents 80% unplanned downtime |
| Custom Pressure-Curve Database Expansion | 4 weeks | 30+ new component profiles | Reduces commissioning time 60% |
| Hot-Rolling Configuration | 12 weeks | Up to 200°C operation | Enables warm-rolling specialty alloys |
| Integrated Downstream Marking System | 7 weeks | Auto component identification | MES tracking integration |
| Hydraulic Oil Conditioning Unit | 5 weeks | Offline filtration + water removal | Extends fluid life 2.5× |
