A profile bending machine is specialized equipment designed to bend structural steel sections like angle iron, channel steel, H-beams, I-beams, and pipes into curved or cylindrical shapes. Unlike flat-plate bending machines, profile benders have uniquely shaped rollers that cradle the profile's geometry and apply controlled bending force.
The workpiece (e.g., angle iron or H-beam) is inserted between three roller sets: two lower support rollers and one upper bending roller. As the profile travels through and upper roller descends, the section gradually curves. Multiple passes increase the curve radius until the desired diameter or arc is achieved.

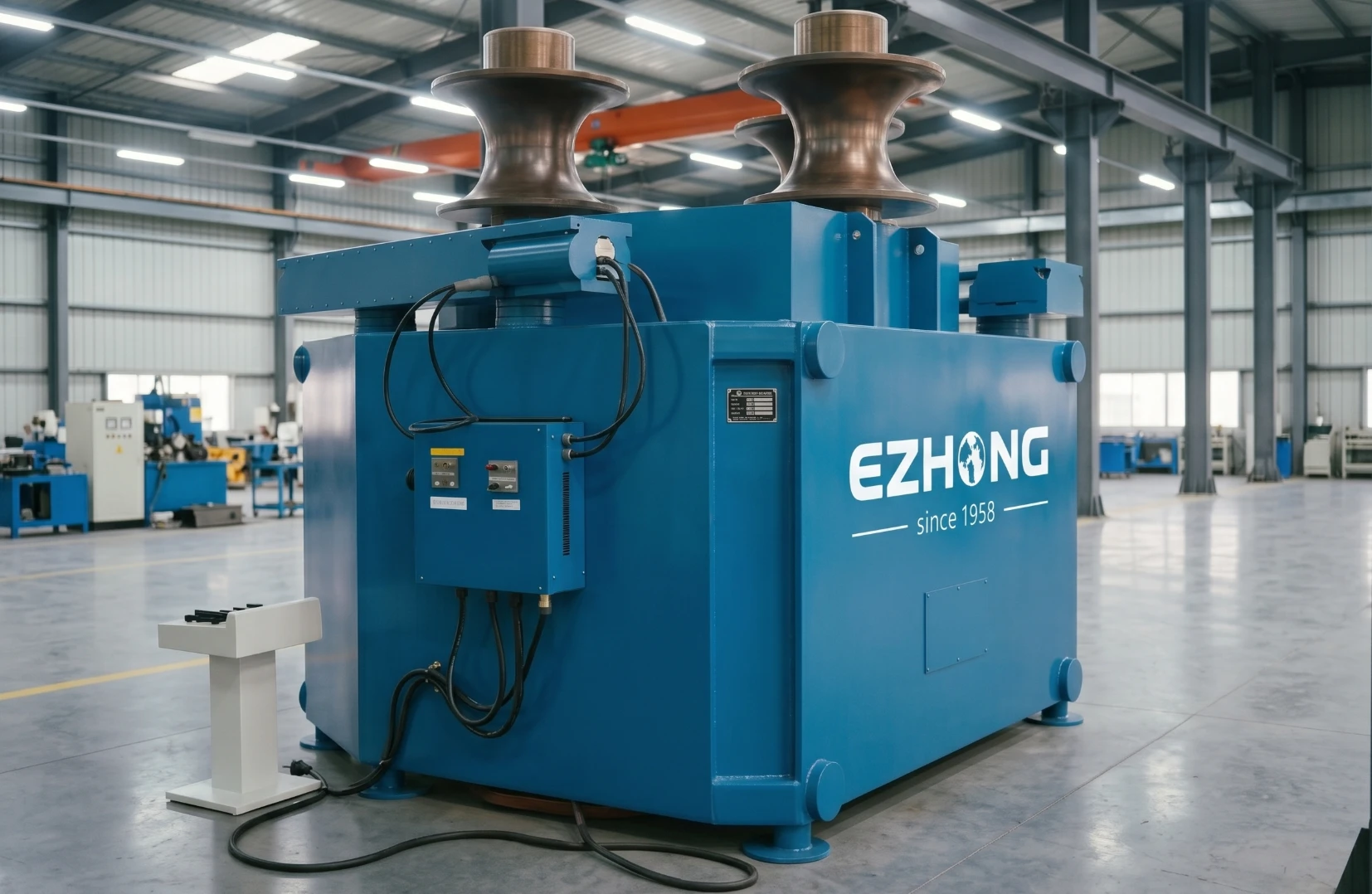

Curved structural profiles are essential for bridge arches, stadium domes, spiral equipment and helical staircases. Single-piece bent profiles eliminate multiple welding seams, cutting labor and improving structural strength. EZHONG THW24 series supports 13+ profile types with interchangeable roller molds, full hydraulic three-roller independent drive, built-in springback compensation for stable, high-efficiency forming.
If you operate steel structure factories, bridge & stadium construction manufacturers, tank & pressure vessel workshops, spiral conveyor equipment plants, architectural metal fabrication shops or ornamental metal art studios—and you need one multi-functional bending equipment to process angle, channel, H-beam, pipe and various special structural profiles. Our THW24 series with swappable roller molds covers 13 standard profile types, supports customized special rollers, equipped with full-drive hydraulic and CNC springback compensation, matching small batch custom processing and mass standardized production demands for all curved structural steel projects.
All common structural steel profiles covered, custom roller molds available for special cross-sections
| Profile Type | Typical Industrial Application |
|---|---|
| Angle Steel (L-Section) | Steel framework, bracing, curved arch support |
| Channel Steel (U-Section) | Curved load-bearing channels, large duct frameworks |
| H-Beam / I-Beam | Cylindrical building columns, curved stair main beams |
| Pipe / Round Tube | Spiral conveyors, storage vessel arches, handrails |
| Rectangular Tube / Box Section | Curved box columns, decorative structural frames |
| T-Section (T-Beam) | Curved guide rails, building tie-back components |
| Flat Bar / Plate Strip | Ornamental curved decorative metal parts |
| Angle + Flat Composite Profile | Custom combined structural assemblies |
| Channel + Reinforcement Profile | Heavy-duty reinforced curved beam components |
| Specialty Custom Profiles No.10–13 | Non-standard customer-specific cross-section steel |
Applicable material tensile strength: 250–550 MPa carbon & low-alloy steel; high-strength steel forming supported with customized reinforced roller sets.
Each roller equipped with separate hydraulic drive motor, realizing 100% balanced load distribution, zero synchronization delay, lower daily maintenance cost, and more accurate springback compensation during profile forming.
Complete roller mold replacement finished within 30–45 minutes. One machine processes angle, channel, H-beam, pipe and other ten kinds of profiles, greatly reducing equipment investment and factory floor occupation.
Put in raw profile → continuous rolling to finished curved workpiece → direct unloading. Eliminate repeated clamping and flipping procedures, improving production efficiency by 40–50% compared with traditional split bending equipment.
The system calculates over-bending amount automatically according to material tensile strength and profile cross-section size. After cooling, finished curved radius error controlled within ±10–20mm to meet high precision structural fabrication standards.

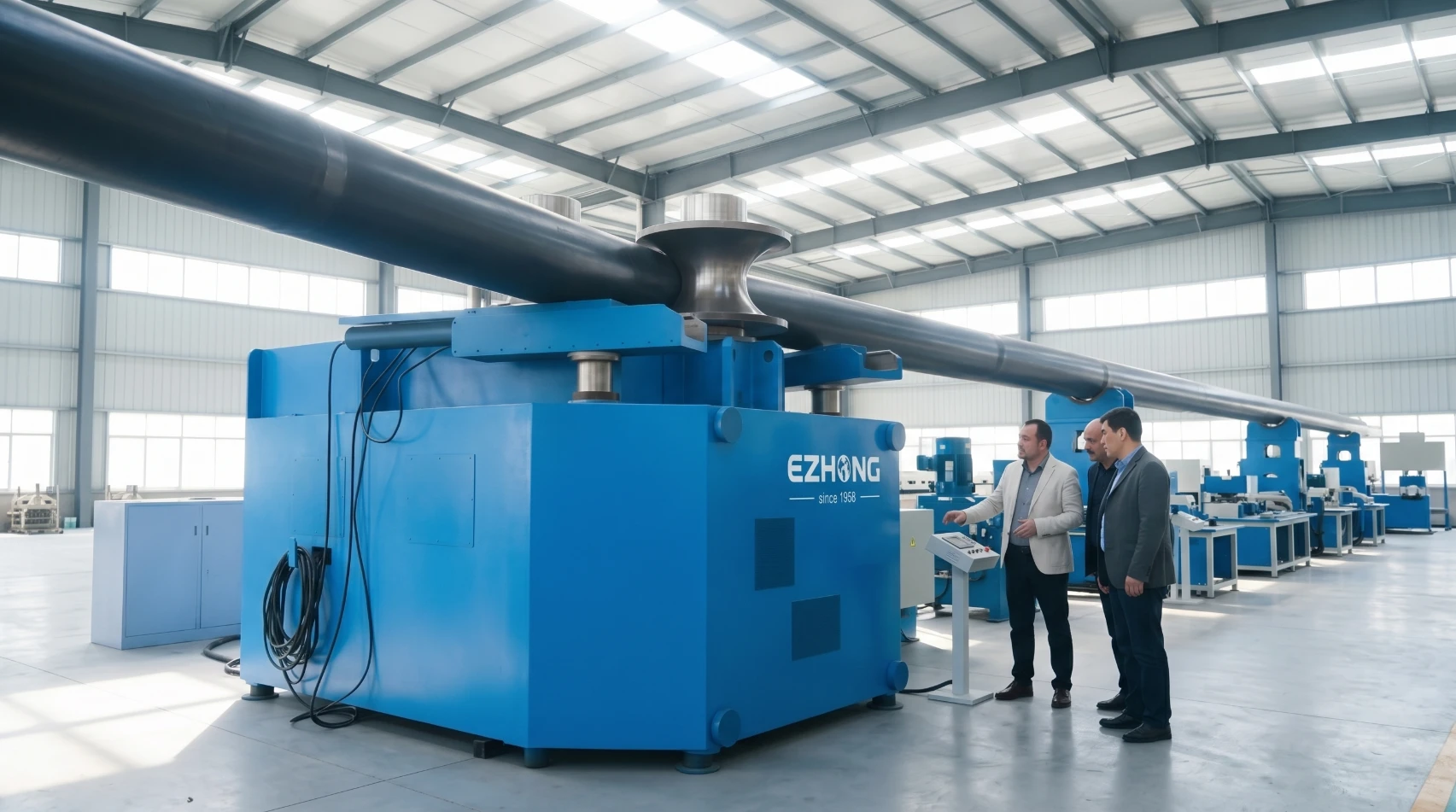

Curved arch ribs, cylindrical support columns, helical handrails for bridges and large stadium buildings.

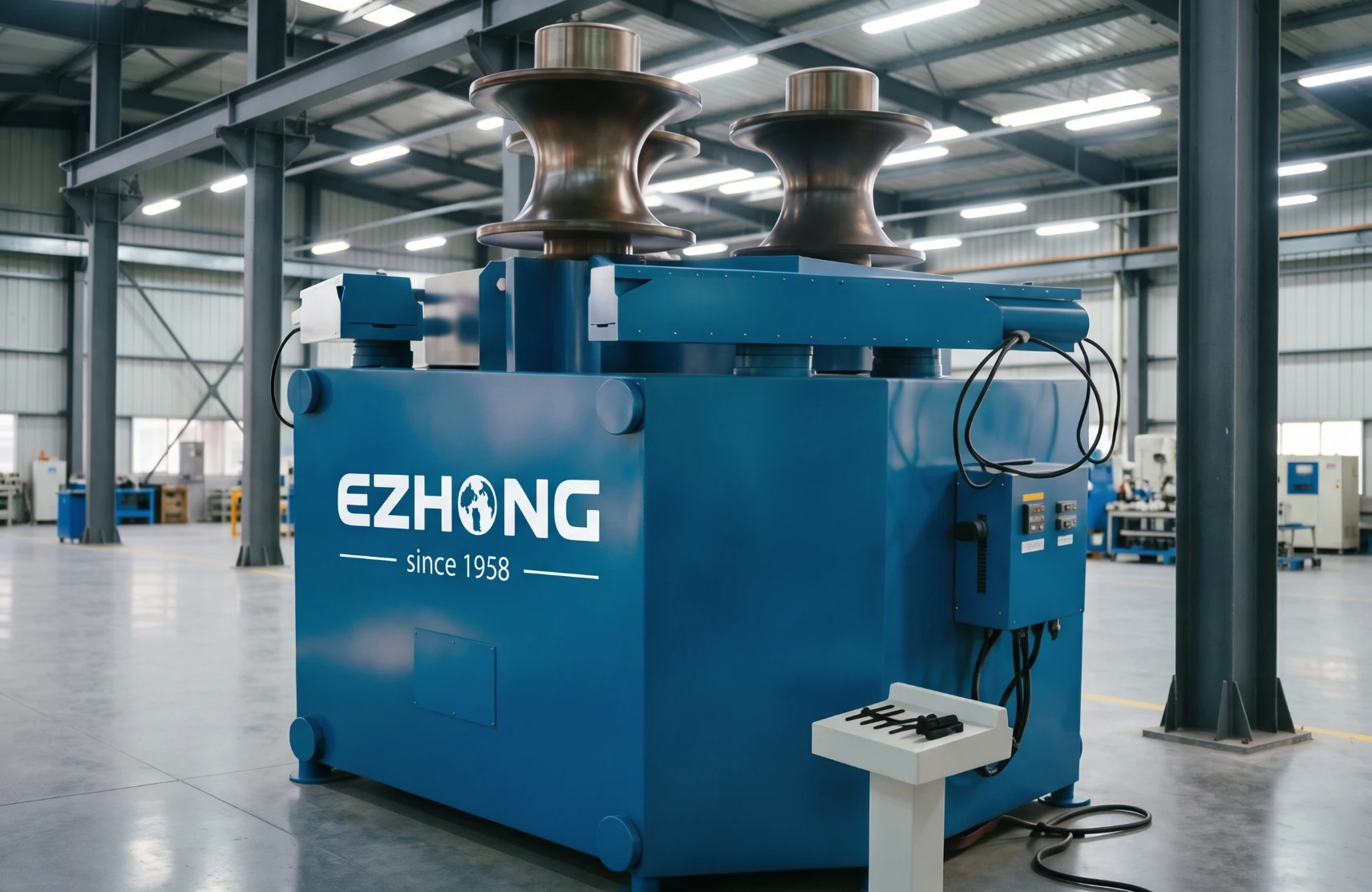

Curved H-beam and channel frameworks for vertical cylindrical storage tanks and pressure vessels.

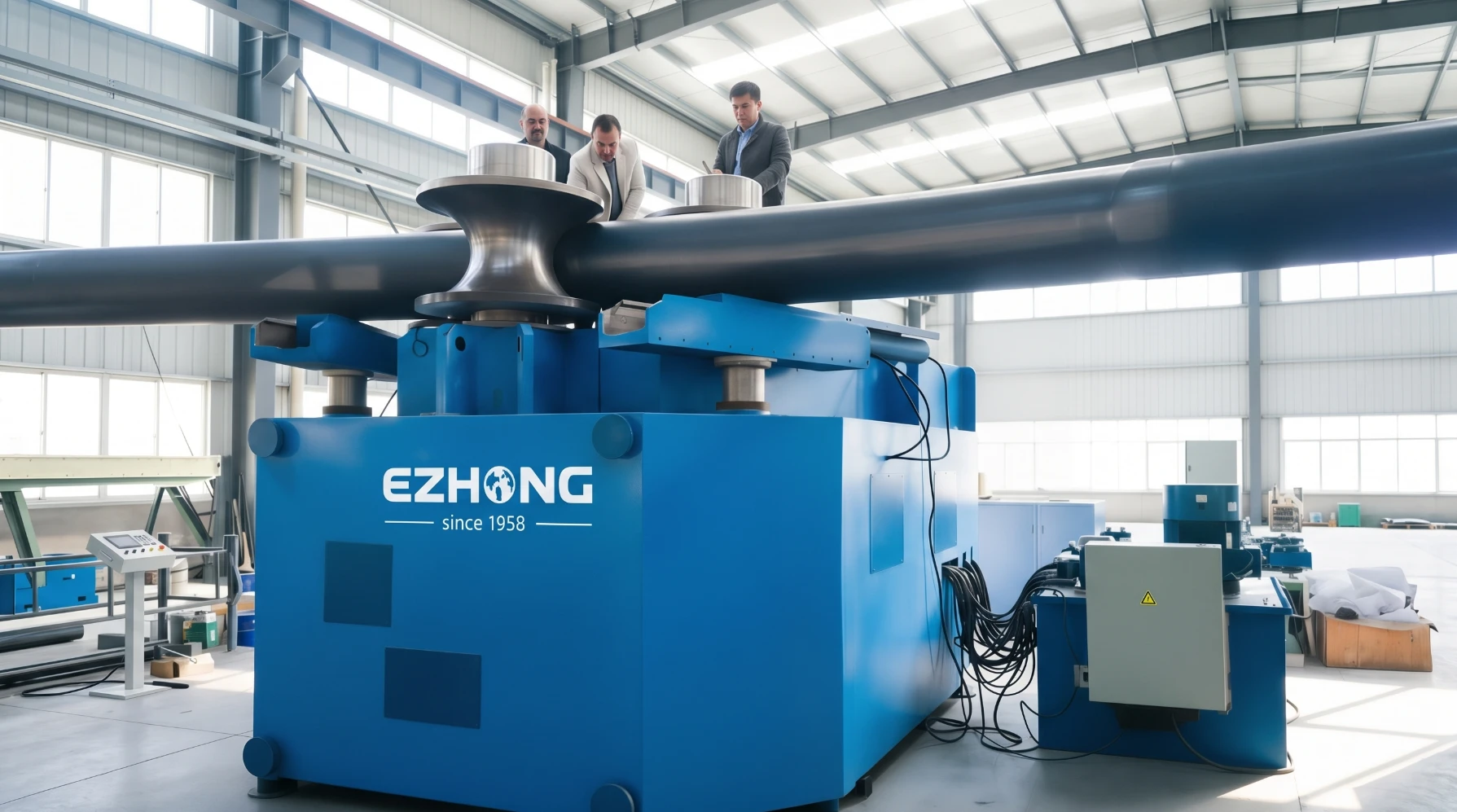

Helical spiral section forming for grain conveyors, screw transport machinery and equipment housings.

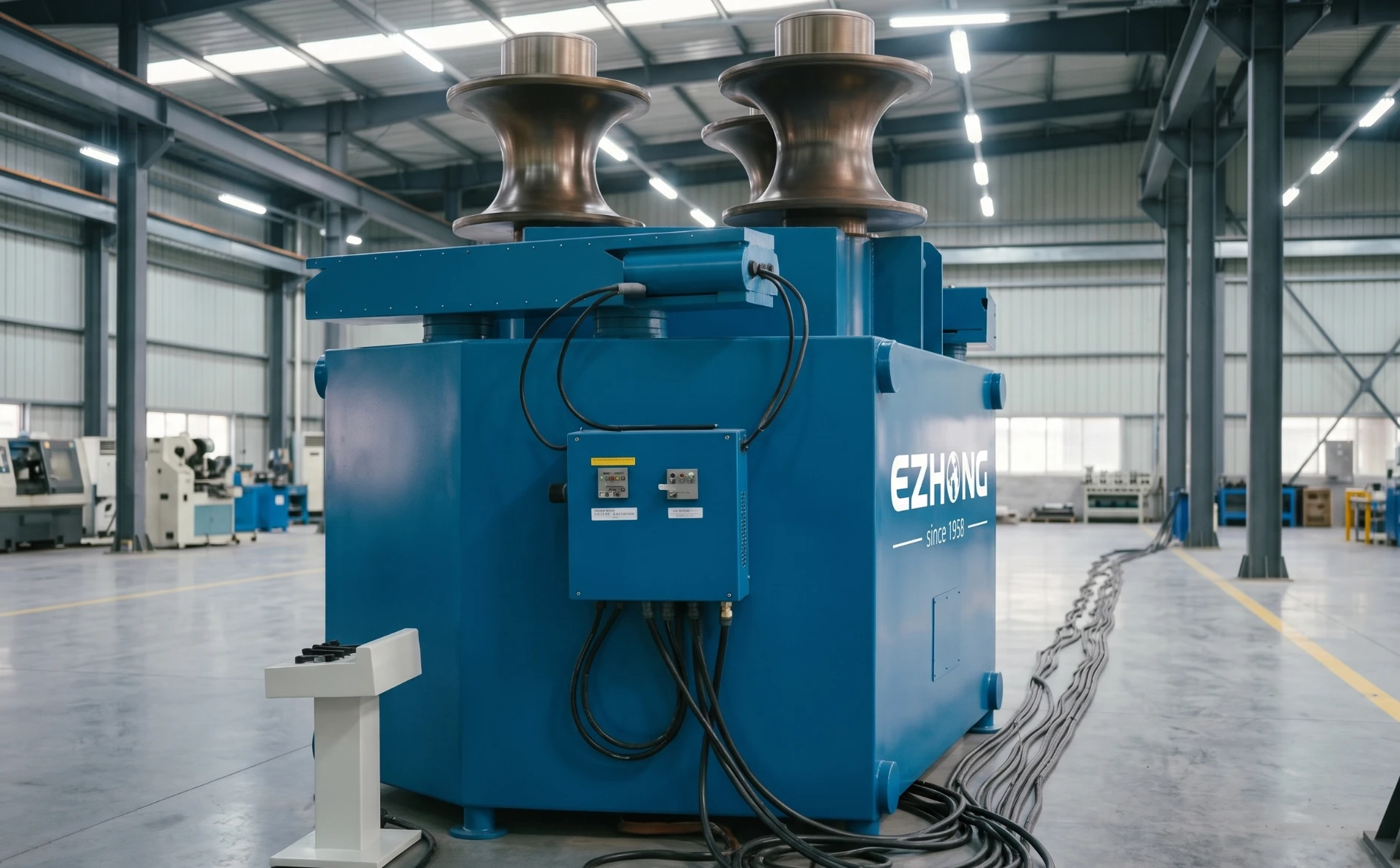

Curved structural steel beams and circular pipe handrails for indoor & outdoor spiral staircases.
Special curved profiles for outdoor sculptures, premium architectural decorative metal elements.

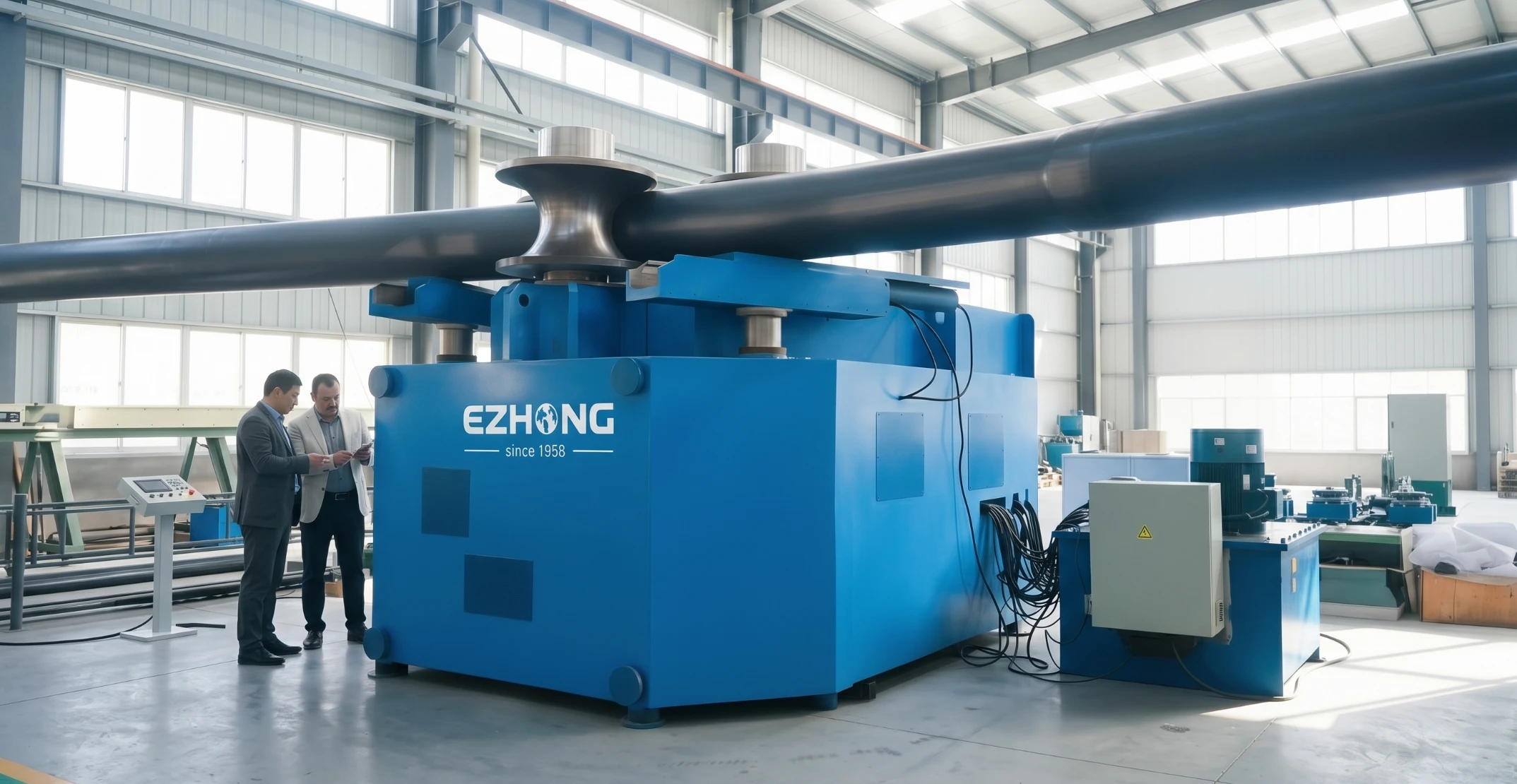

Bent channel and round pipe for large commercial HVAC ducts and compressed air pipeline frames.
THW24 standard roller molds cover 9 mainstream structural profiles. We can design and manufacture custom roller sets for special non-standard cross-sections. Provide profile drawing or physical sample for custom mold development, lead time 4–8 weeks, cost range ¥20,000–¥80,000 based on mold complexity.
Standard configuration adapts 250–550 MPa mild carbon & low alloy steel. For high-strength steel 600–1100MPa, we upgrade hydraulic power unit and thicken roller molds, matching slower forming speed; post-bending heat treatment solution can be matched upon customer demand.
The minimum bending radius is about 500mm, subject to the thickness of the profile wall. The maximum bending radius has no hard upper limit, supporting 5m, 10m and ultra-large gentle arc forming; the actual limit is determined by customer project drawing requirements.
100mm angle steel bent to 1m diameter (mild steel): 3–5 mins per piece; 200mm H-beam bent to 3m diameter: 8–12 mins; 150mm high-strength channel bent to 2m diameter: 15–20 mins.
Standard THW24 complete machine: 10–14 weeks production cycle. If additional custom roller molds are required, add another 4–8 weeks lead time. We provide expedited priority production service for urgent orders, delivery shortened to 6–8 weeks with extra priority surcharge.
