A plate leveling machine removes internal stress and geometric defects from metal plates using a series of upper and lower rollers that bend the plate repeatedly in alternating directions. The goal: transform wavy, warped, or poorly-formed plates into perfectly flat material.
After thermal or mechanical processing, plates accumulate residual stress and geometric defects (wave, warp, buckle). These cause problems downstream: welding gaps, dimensional drift in machining, uneven force distribution in pressing, and quality issues in end-products.
We are China's #1 market leader in chemical machinery large-scale plate bending equipment—and our complementary plate leveling machines deliver the same precision and reliability. Our 17-roller systems flatten extreme materials: 100mm thick carbon steel, 1100MPa armor steel, and composite plates with our patent split-drive technology.
src="/image/products/plate-leveling-machine/plate-leveling-machine-7.webp"
If you operate steel mills, bridge & shipyard factories, engineering machinery manufacturers, pressure vessel workshops, composite clad plate producers or defense armor fabricators—and you require stable high-precision stress relief & plate flattening equipment for carbon steel, high-strength alloy or 1100MPa armor steel, EZHONG provides customized leveling lines matching your plate thickness, tensile strength, width and production throughput. From standard heavy plate models to exclusive military armor steel special machines, we deliver one-stop leveling solutions for all heavy industry scenarios.
Select the series matched to your plate thickness, material tensile strength and flatness tolerance requirements
Compare technical parameters of all five leveling machine series to match your production material
| Specifications | Heavy Plate LevelingMachine (W43T) | Clad Plate LevelingMachine (EZW43T) | High-Strength Plate LevelingMachine (EZW43B) | High-Precision Thin Plate Leveling Machine (EZW43H) | Hot Plate Leveling Machine (EZW43V) |
|---|---|---|---|---|---|
| Model | W43T | EZW43T | EZW43B | EZW43H | EZW43V |
| Plate Thickness Range | 20–120mm | 6–80mm | 10–40mm | 3–30mm | 5–60mm |
| Maximum Plate Range | 5000mm | 3000mm | 3000mm | 2500mm | 1500mm |
| Applicable Material Tensile Strength | ≤1100 MPa | ≤550 MPa | 690–2000 MPa | 345–1000 MPa | 345-1100 MPa |
| Number of Leveling Rolls | 7–11 | 9–13 (Split-Drive) | 11-17 | 19-23 | 13-17 |
| Core Technology | Heavy-Duty Load-BearingSystem | Patented Split-Drive Technology | Multi-Roll Full-Drive Technology | Servo Control Technology | Variable-Roll ConfigurationQuick Roll Change Technology |
| Leveling Flatness Tolerance | ±1mm/m | ±2mm/m | ±1mm/m | ±0.5mm/m | ±1mm/m |
| Typical Applications | Bridges, Shipyards, Steel Mills | Stainless Steel-Carbon Steel Clad Plates | Construction Machinery Booms | Automotive & Precision Stamping | Steel Mills, Construction Machinery |
EZHONG occupies over 70% market share among China's top 10 pressure vessel manufacturers. We are exclusive leveling equipment supplier for Baosteel 1100MPa armor steel line, with stable 24/7 running EZW43 units deployed at India JSL large steel mill.
Unmatched comprehensive capacity in domestic market: maximum plate thickness 100mm, maximum processing width 5000mm, maximum material tensile strength up to 1500MPa, covering full range of heavy & ultra-high strength metal plates.
Independent hydraulic drive for every single roller, eliminates surface shear stress during flattening. Effectively avoid delamination & cracking on stainless-carbon, titanium-steel clad composite plates, protected by national invention patent.
Classified flatness tolerance for different production scenarios: ±3mm/m for general carbon steel, ±1~2mm/m for high-strength structural steel, down to industry-leading ±0.05mm/m precision for military armor steel plates.

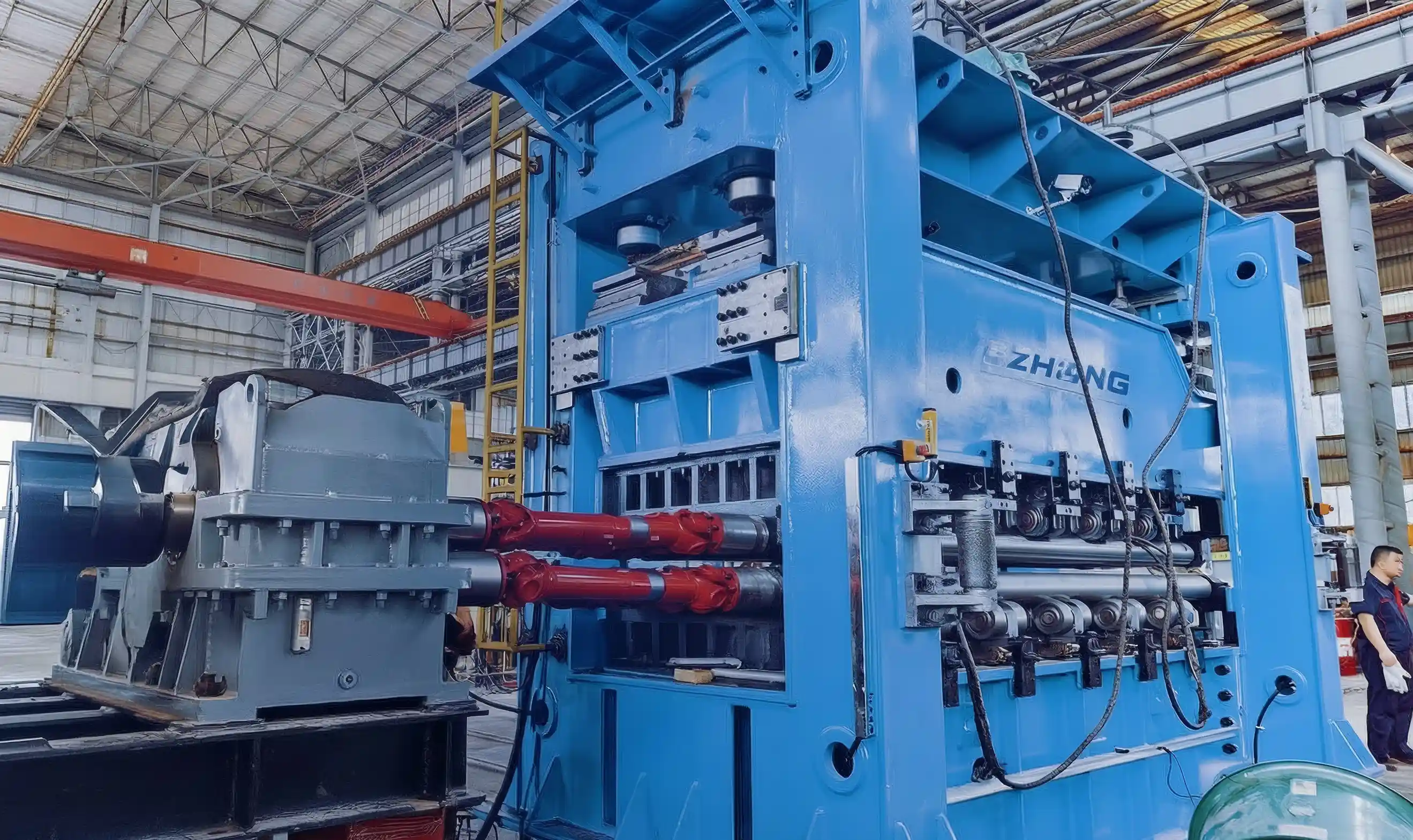

Flattening thick structural plates for bridge pylons, stadium arch frames and large steel buildings.
24-hour continuous leveling after hot rolling & cutting, long-term cooperation with Baosteel and India JSL.

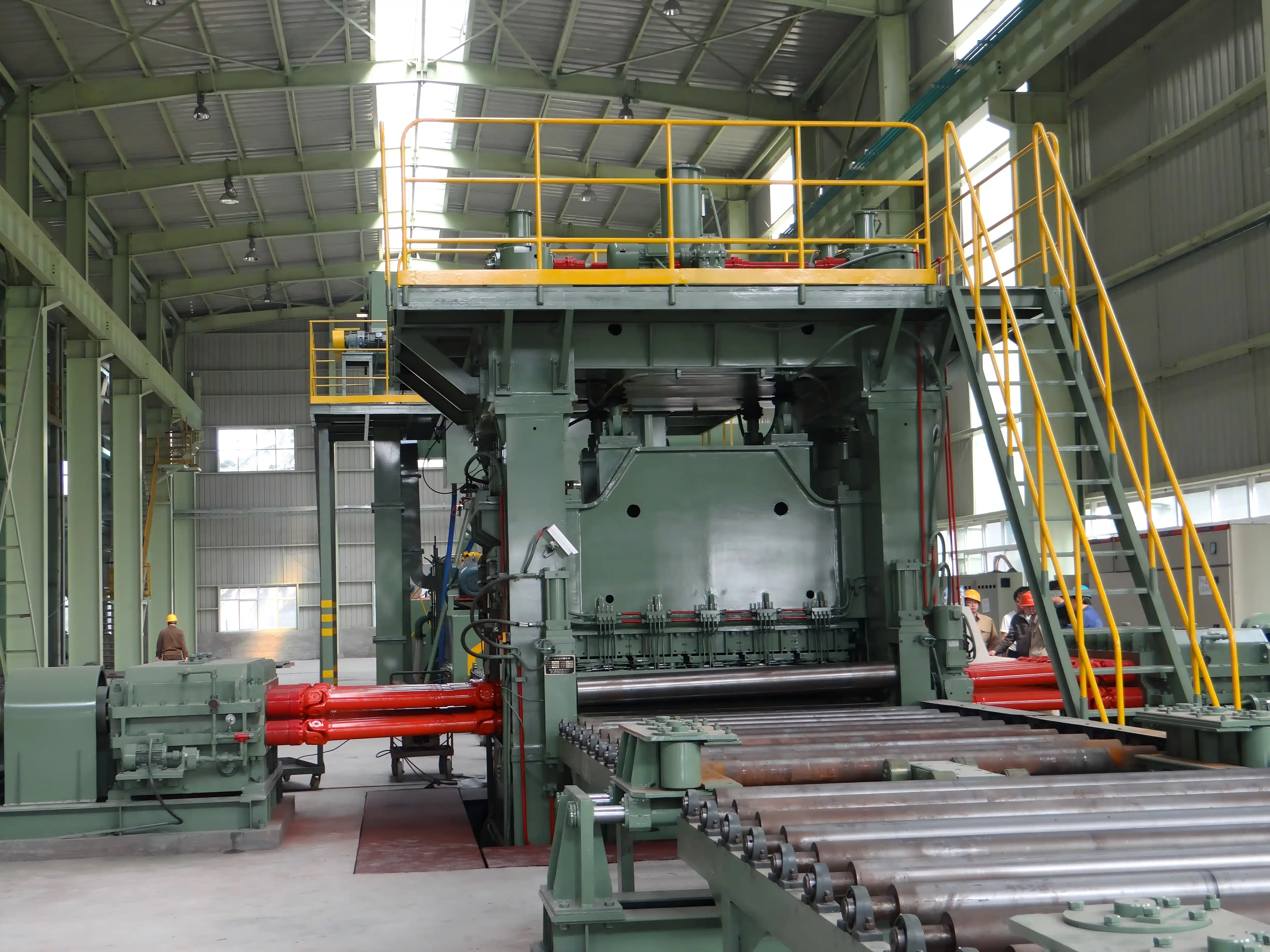

High-strength alloy plate flattening for excavator arms, crane booms and heavy equipment frames.

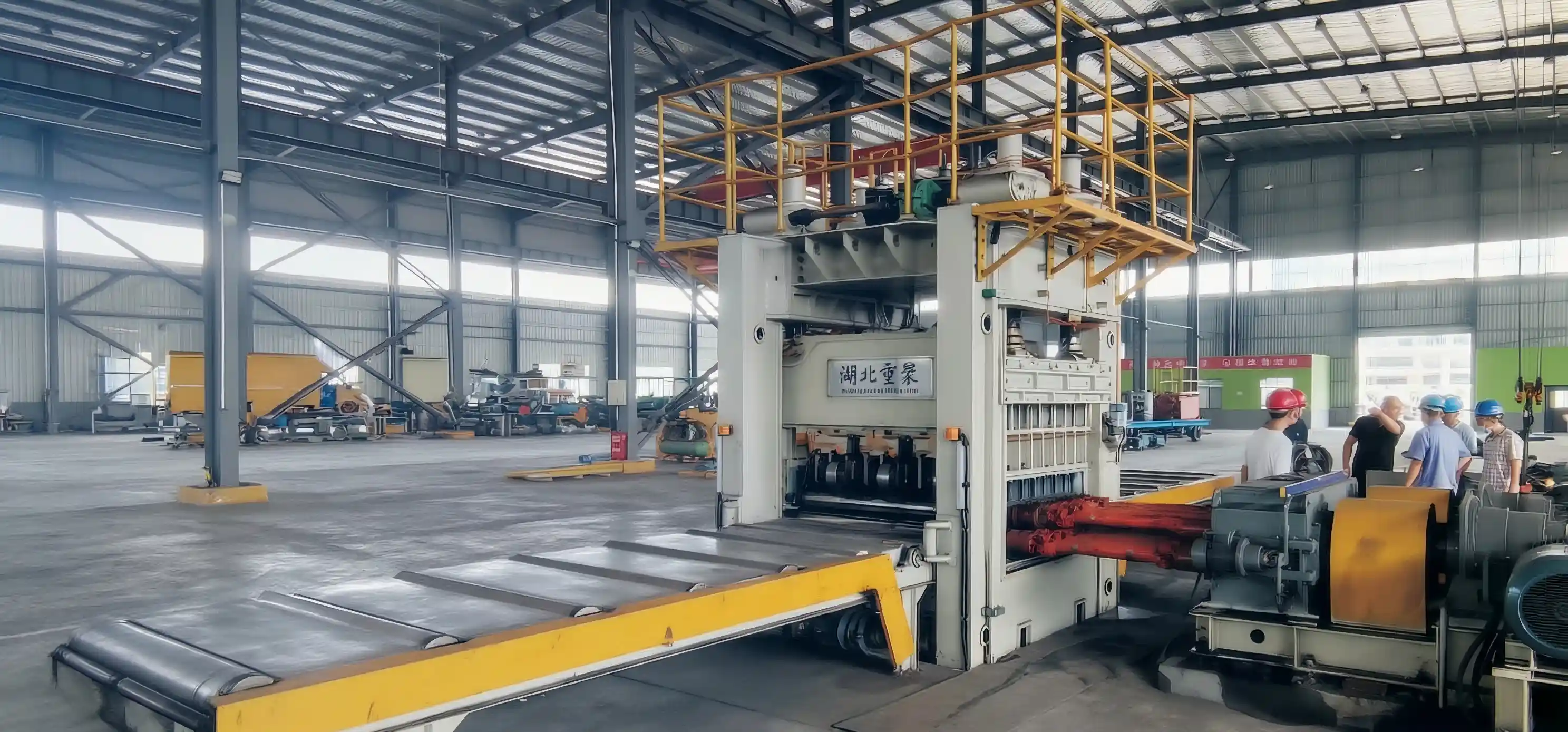

Stress removing & straightening for reactor shells, heat exchangers and large boiler drums.

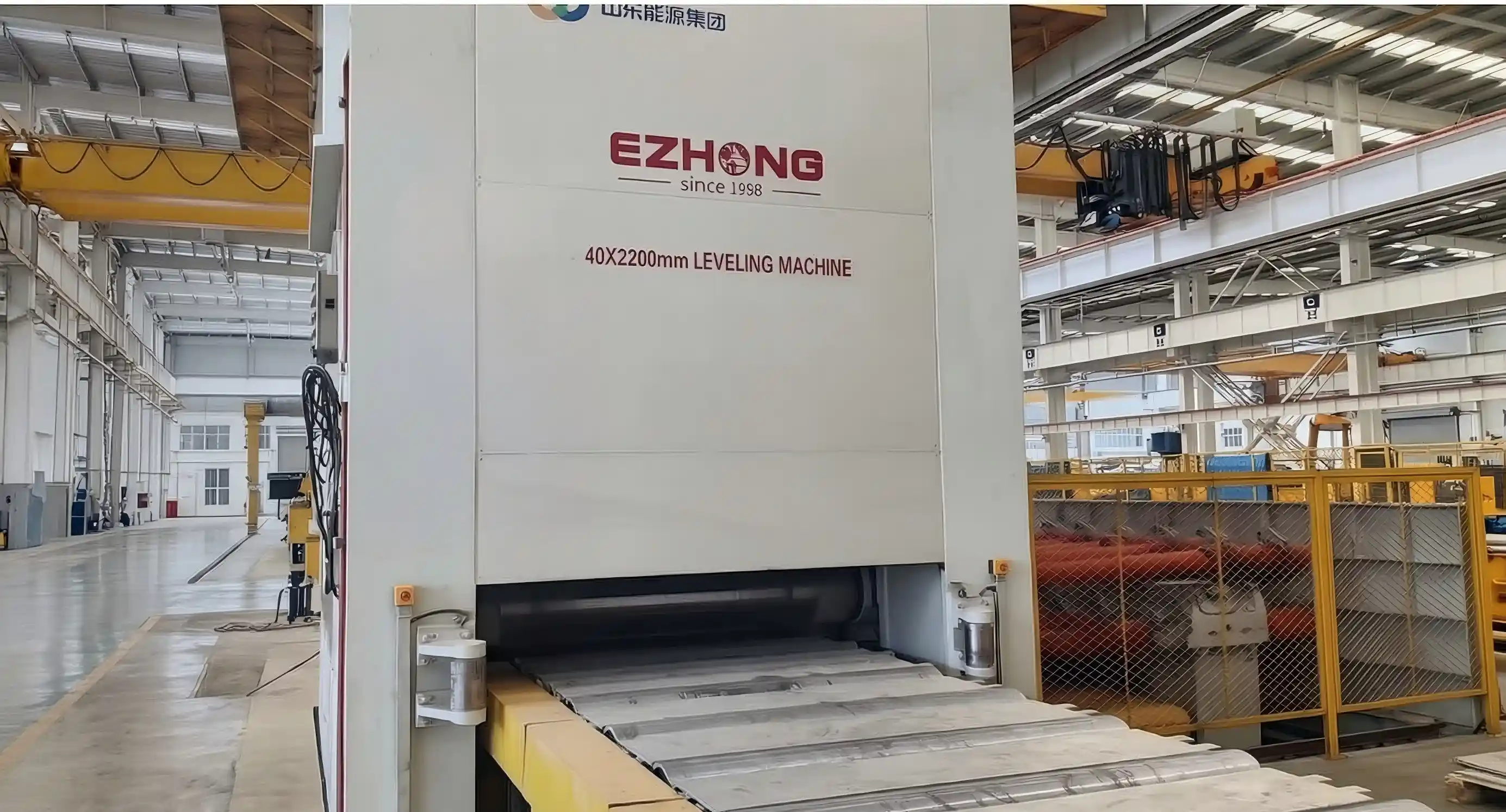

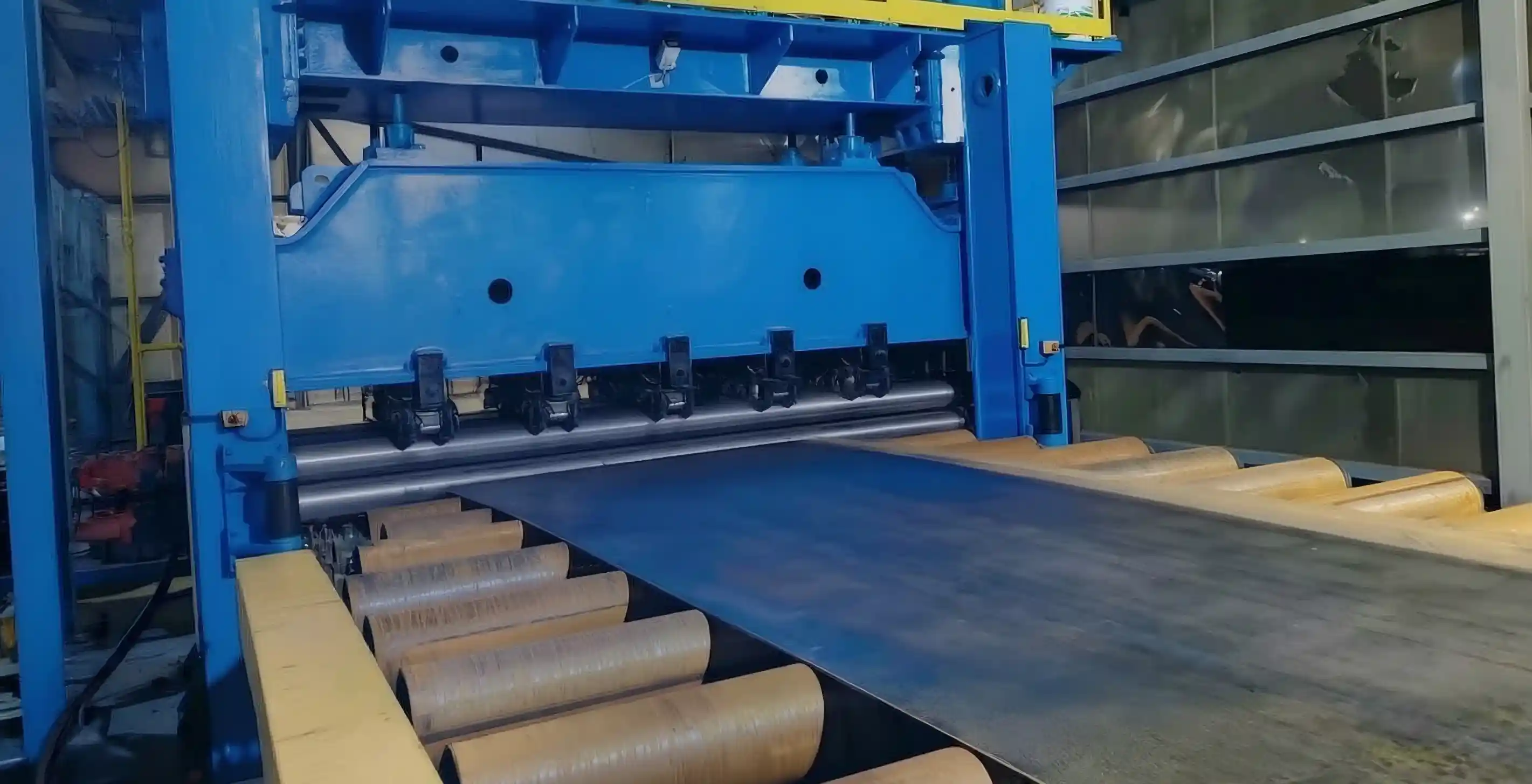

Ultra-precise flattening for vehicle armor, bulletproof steel and nuclear special alloy materials.

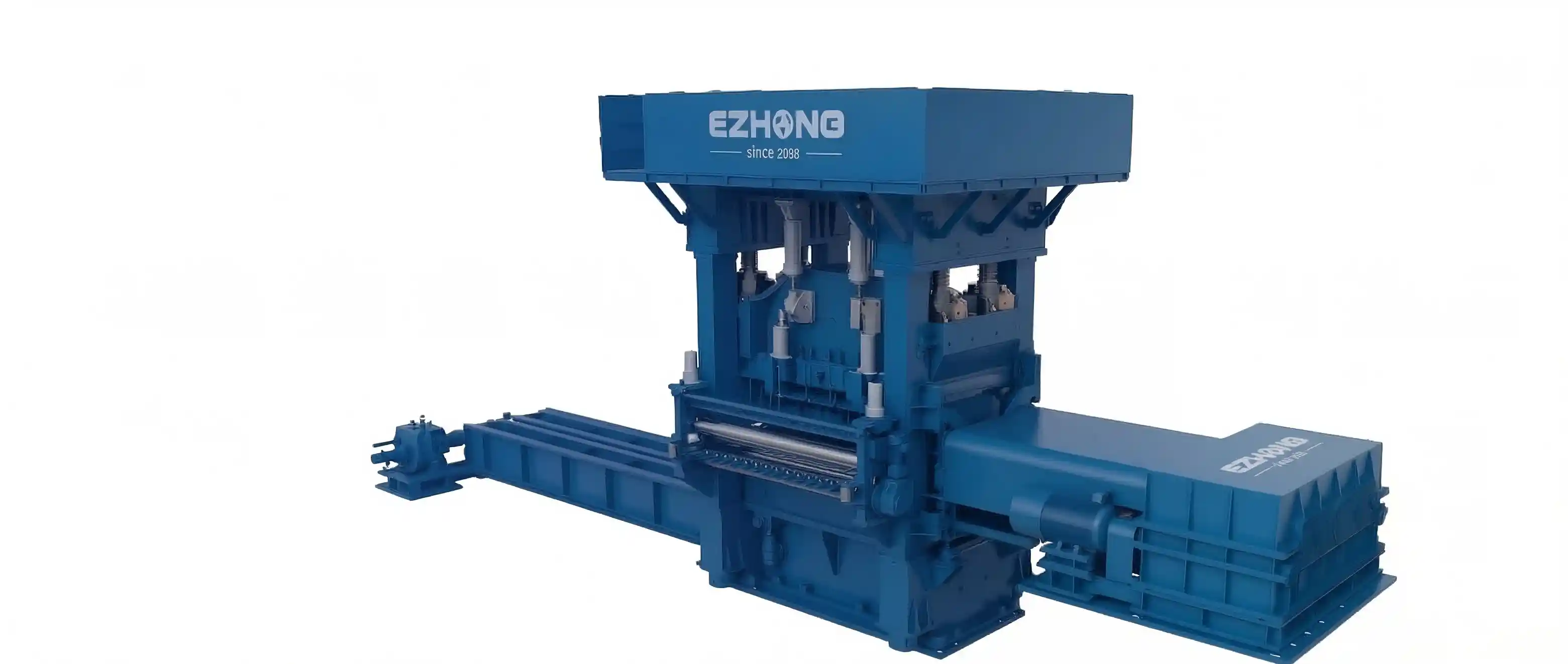

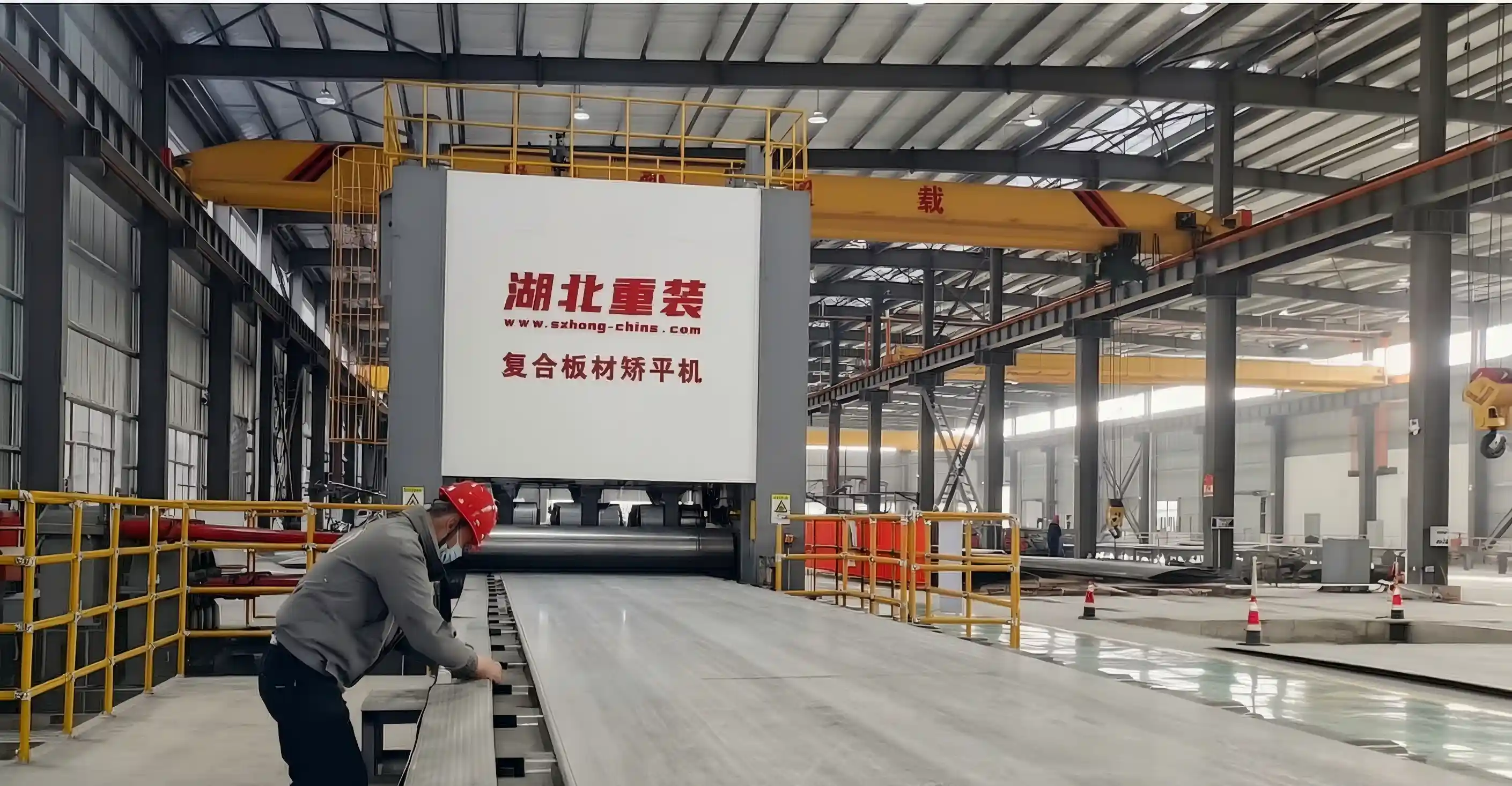

Special split-drive leveling for stainless-steel, titanium and copper composite layered plates.
You need plate leveler if: (1) Hot rolled plates generate wave, warp or buckle defects; (2) Thermal stress after cutting leads to edge curling; (3) Customer drawing requires flatness within ±2mm/m before welding; (4) Processing high tensile strength steel over 1000MPa; (5) Cold forming workpieces need final stress relief flattening.
In heavy machinery industry, the two terms are frequently mixed. Leveling uses multi-row upper/lower rollers to eliminate tiny surface waves and residual stress. Straightening equipment only corrects large single bends with limited 2–4 roller structures, cannot remove internal plate stress thoroughly.
Absolutely yes. EZW43 standard series supports 690–1100MPa general high-strength alloy steel. EZW43CY exclusive armor steel model specially designed for 1100MPa bulletproof plate, adopting patented 17 roller precision flattening system only available from EZHONG in China.
32–50mm normal wave plate: 1–2 minutes per piece; 60–80mm heavy warp plate: 3–5 minutes; 100mm extreme stress armor steel: 5–10 minutes. Overall production capacity ranges 10–30 tons/hour based on raw plate flatness condition.

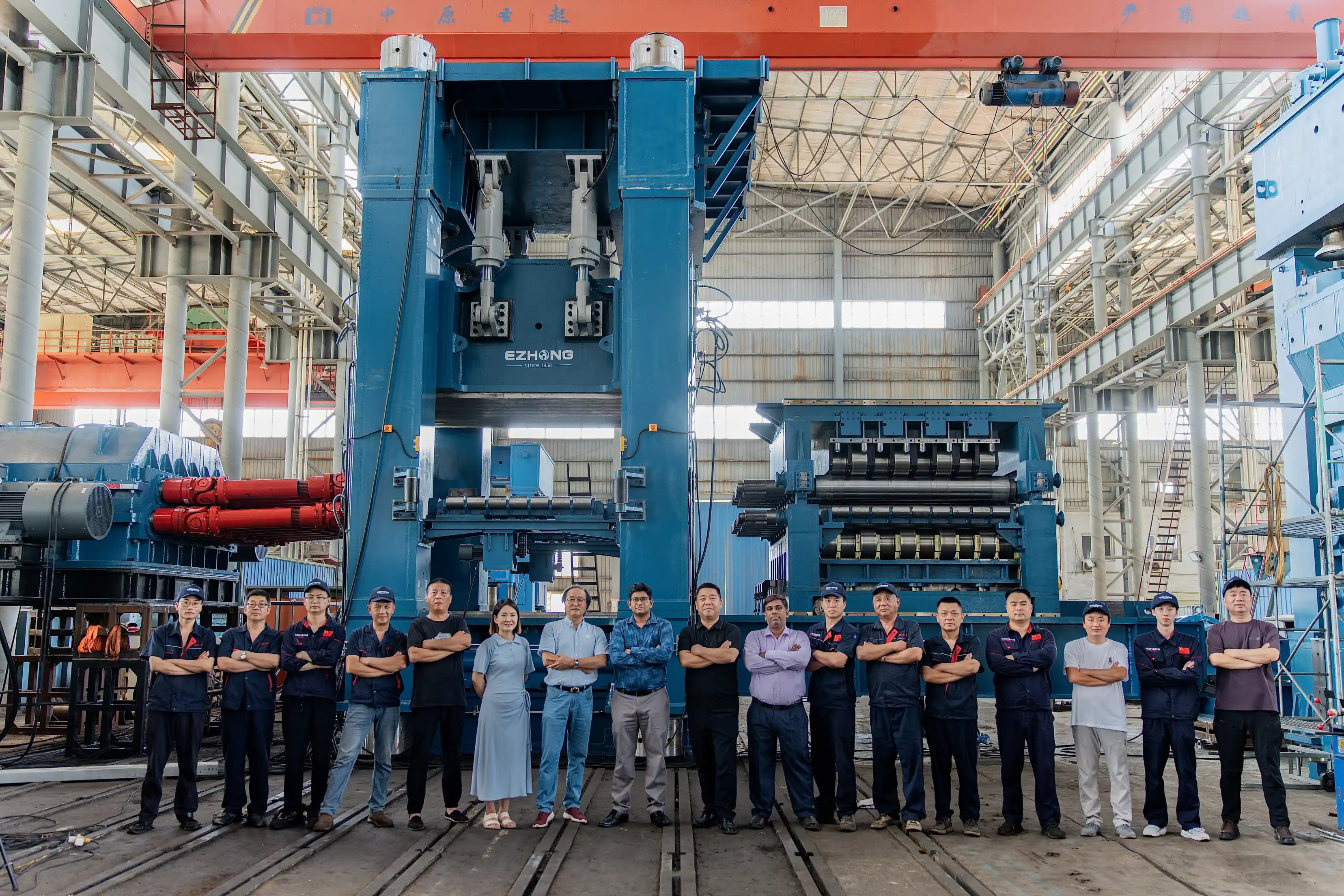

We provide optional EZW43V hot leveling series. All bearing assemblies are heat-resistant up to 300°C, suitable for steel mill hot rolling continuous line working with raw plate temperature 800–1050°C.
