CEZW11S-150/3200 HEAVY PLATE ROLLING MACHINE IN WINDTOWERS

EZHONG's CEZW11S-150/3200 heavy plate rolling machine installed in a wind tower manufacturing facility, demonstrating the machine's massive construction required for processing ultra-thick steel plates. The machine's reinforced frame, oversized hydraulic cylinders, and heavy-duty roller assemblies are engineered to withstand the extreme forces generated when bending 150mm-thick high-strength steel. This heavy plate rolling capability enables production of the lower tower sections for the tallest wind turbines, where maximum strength and structural integrity are critical for supporting the nacelle, rotor, and blade assembly at heights exceeding 150 meters.

Active rolling operation showing the CEZW11S-150/3200 machine processing thick steel plates for wind tower base sections. The massive upper roll applies tremendous downward pressure while the precisely positioned lower rolls support and guide the material through multiple rolling passes. Advanced load monitoring systems continuously track hydraulic pressures and roller deflection, automatically adjusting parameters to maintain consistent bending radius despite the enormous forces involved. This level of control is essential when rolling ultra-thick plates where even minor variations can compromise tower assembly or structural performance.

Advanced CNC control system providing comprehensive machine operation and monitoring capabilities for the heavy plate rolling process. The control interface displays real-time data including roller positions, hydraulic pressures, material thickness, and target radius calculations, enabling precise control over every aspect of the rolling operation. Programmable rolling sequences optimize the number of passes required for different plate thicknesses and diameters, improving production efficiency while maintaining strict quality standards. The system's data logging capabilities provide complete traceability for each rolled section, supporting quality assurance and continuous process improvement initiatives.

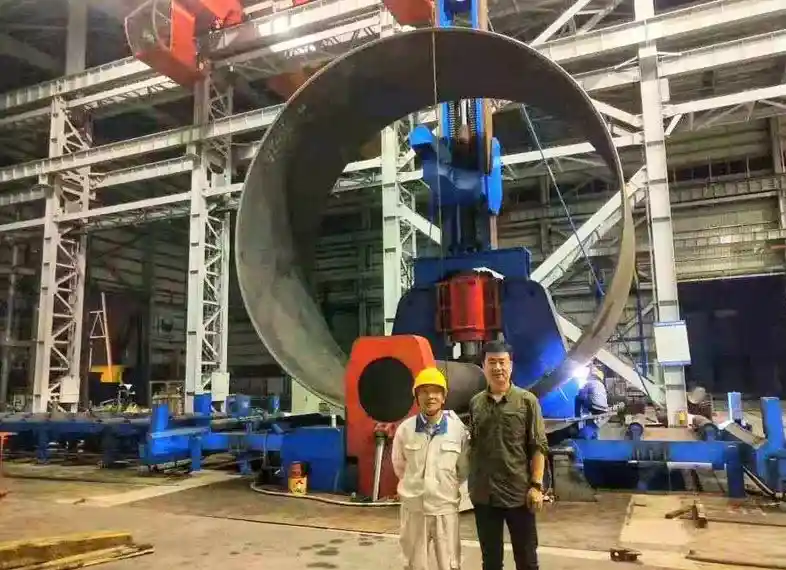

Pre-bending operation on ultra-thick steel plates using the CEZW11S-150/3200's dedicated pre-bending function. This critical first step applies initial curvature to both plate edges before main rolling begins, eliminating the flat spots that are particularly problematic when rolling heavy-gauge materials. The pre-bending system features independent hydraulic controls that enable precise adjustment of edge bending forces based on material thickness and properties, ensuring optimal results across varying steel grades and thicknesses commonly used in wind tower fabrication.

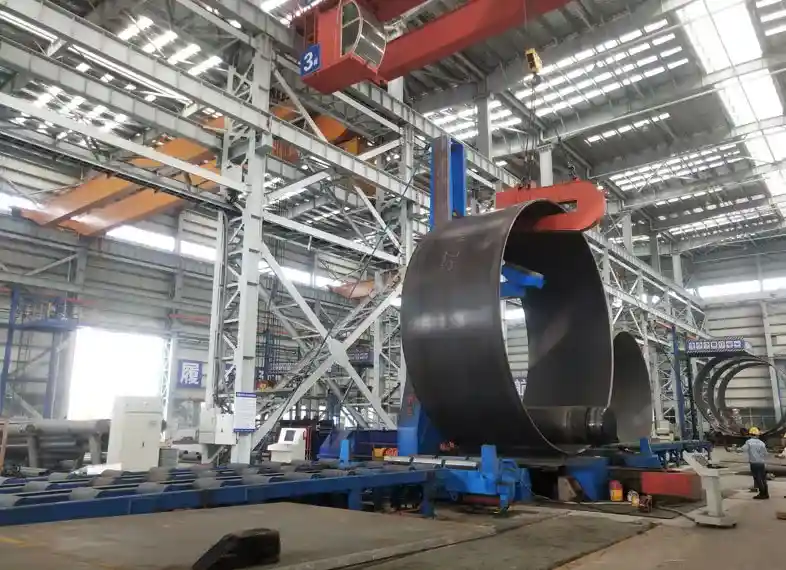

Completed heavy-gauge wind tower sections produced using EZHONG's CEZW11S-150/3200 rolling machine, ready for longitudinal welding and final assembly. These massive cylindrical sections, formed from 150mm-thick steel plates, will serve as the base segments of ultra-tall wind turbine towers designed for next-generation multi-megawatt wind farms. The precision and consistency achieved through EZHONG's heavy plate rolling technology enables manufacturers to meet the stringent dimensional tolerances and structural requirements for these critical components, directly contributing to the global expansion of wind energy generation capacity and the transition to renewable energy infrastructure.
