STEEL PLANTS EZW43BY-12*2000

Leveling machines in steel plants fix steel plate deformations to ensure flatness for further processing. EZHONG's EZW43BY-12*2000 leveling machine is specifically designed for steel manufacturing facilities that require precise flatness correction across wide steel plates. This advanced leveling equipment features 43 backup rollers with a 12mm maximum thickness capacity and 2000mm working width, making it ideal for processing steel sheets used in construction, automotive manufacturing, and heavy machinery production. The machine's robust construction and precise roller adjustment system ensure consistent flatness results, eliminating warping, waviness, and residual stresses that can compromise steel plate quality. Steel plants worldwide rely on EZHONG's leveling technology to meet stringent flatness tolerances required by downstream manufacturers.

Steel Plant Leveling Machine

Large-scale steel manufacturing facility equipped with EZHONG's EZW43BY-12*2000 leveling machine, processing thick steel plates for industrial applications. The machine's 43-roller configuration provides superior flatness correction across the entire 2000mm width, ensuring steel plates meet critical flatness specifications required for structural steel fabrication, pressure vessel manufacturing, and heavy equipment production.

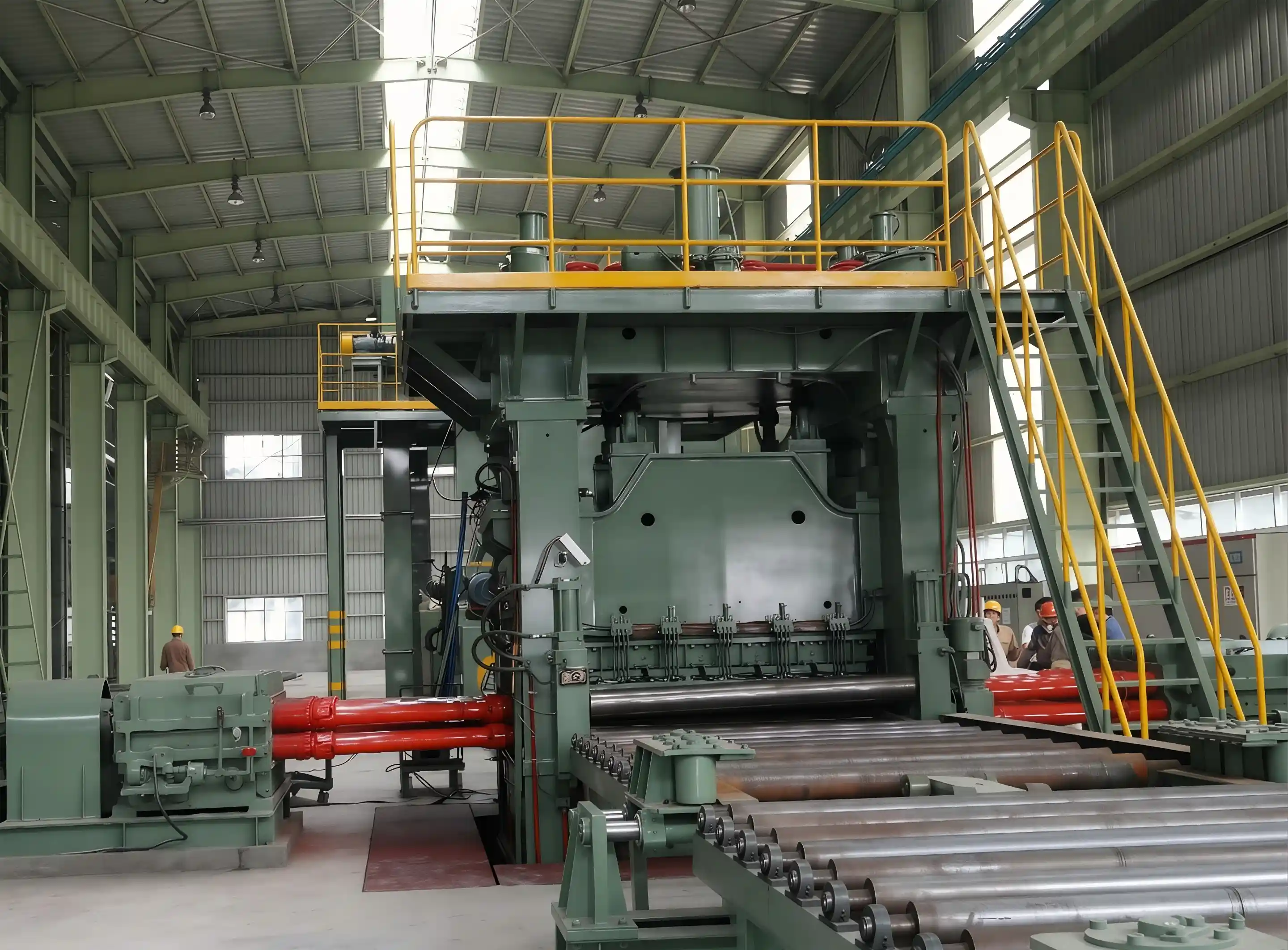

Steel Plate Leveling Process

Close-up view of the leveling process showing steel plates passing through precision-adjusted rollers that eliminate warping and residual stresses. EZHONG's advanced leveling technology applies controlled bending forces across multiple contact points, progressively flattening the steel plate while maintaining material integrity. This multi-roller approach ensures uniform flatness correction without introducing new deformations or compromising the steel's metallurgical properties.

Quality Control and Inspection

Quality control station where leveled steel plates undergo rigorous flatness inspection using precision measurement equipment. Technicians verify that each plate meets specified flatness tolerances, typically within 0.5mm per meter, ensuring compatibility with automated welding systems, CNC cutting equipment, and other downstream manufacturing processes. The consistent results achieved by EZHONG's leveling machines minimize rejection rates and improve overall production efficiency in steel fabrication operations.

Main Parameter Table of EZW43BY-12*2000 Leveling Machine

ITEM Unit DATA
Specifications mm 12×2000
Maximum plate thickness mm 12
Working width mm 2000
Number of leveling rollers pcs 43
Leveling speed m/min 0-15
Plate yield strength MPa ≤540
